IRFD9020 - Power MOSFET

Datasheet Summary

Description

Third generation power MOSFETs from Vishay provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost effectiveness. The 4 pin DIP package is a low cost machine-insertable case style which can be stacked in multiple combinations on standa

Features

  • Dynamic dV/dt rating.
  • Repetitive avalanche rated.
  • For automatic insertion.
  • End stackable.
  • P-channel.
  • 175 °C operating temperature.
  • Fast switching.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

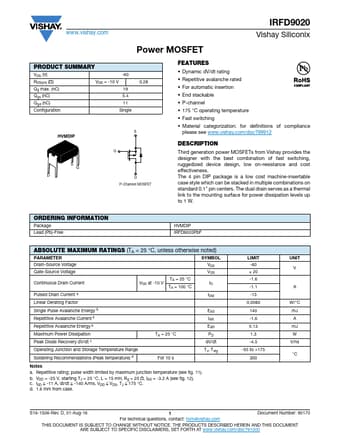

Datasheet preview – IRFD9020

Datasheet Details

Part number IRFD9020
Manufacturer Vishay
File Size 264.08 KB
Description Power MOSFET
Datasheet download datasheet IRFD9020 Datasheet
Additional preview pages of the IRFD9020 datasheet.

📁 Similar Datasheet

  • IRFD9020 - P-Channel Power MOSFET (International Rectifier)
  • IRFD9022 - P-Channel Power MOSFET (International Rectifier)
  • IRFD9024 - Power MOSFET (International Rectifier)
  • IRFD9014 - Power MOSFET (International Rectifier)
  • IRFD9110 - P-Channel Power MOSFET (Intersil Corporation)
  • IRFD9110 - Power MOSFET (International Rectifier)
  • IRFD9110 - P-Channel Power MOSFET (Fairchild Semiconductor)
  • IRFD9110PbF - Power MOSFET (International Rectifier)
  • IRFD9113 - (IRFD9110) P Channel Power MOSFET (Harris)
  • IRFD9113 - (IRFD9110) P Channel Power MOSFET (IRF)
Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text
www.vishay.com IRFD9020 Vishay Siliconix Power MOSFET PRODUCT SUMMARY VDS (V) RDS(on) () Qg max. (nC) Qgs (nC) Qgd (nC) Configuration -60 VGS = -10 V 19 5.4 11 Single 0.28 HVMDIP S G D S G D P-Channel MOSFET FEATURES • Dynamic dV/dt rating • Repetitive avalanche rated • For automatic insertion • End stackable • P-channel • 175 °C operating temperature • Fast switching • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 DESCRIPTION Third generation power MOSFETs from Vishay provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost effectiveness. The 4 pin DIP package is a low cost machine-insertable case style which can be stacked in multiple combinations on standard 0.
