IRFD9120 - P-Channel MOSFET

This page provides the datasheet information for the IRFD9120, a member of the IRFD9123 P-Channel MOSFET family.

📥 Download Datasheet

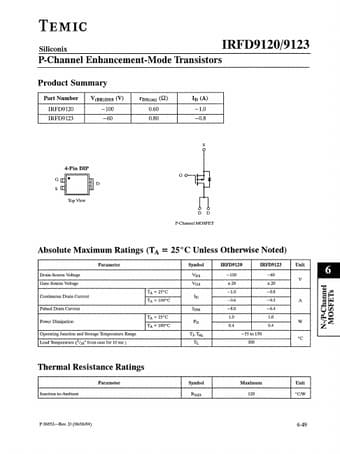

Datasheet preview – IRFD9120

Datasheet Details

Part number IRFD9120
Manufacturer TEMIC
File Size 184.71 KB
Description P-Channel MOSFET
Datasheet download datasheet IRFD9120 Datasheet
Additional preview pages of the IRFD9120 datasheet.

📁 Similar Datasheet

  • IRFD9120 - P-Channel Power MOSFET (Intersil Corporation)
  • IRFD9120 - Power MOSFET (International Rectifier)
  • IRFD9120 - Power MOSFET (Vishay)
  • IRFD9120PbF - Power MOSFET (International Rectifier)
  • IRFD9123 - Avalanche Energy Rated P-Channel Power MOSFET (ETC)
  • IRFD9110 - P-Channel Power MOSFET (Intersil Corporation)
  • IRFD9110 - Power MOSFET (International Rectifier)
  • IRFD9110 - P-Channel Power MOSFET (Fairchild Semiconductor)
  • IRFD9110 - Power MOSFET (Vishay)
  • IRFD9110PbF - Power MOSFET (International Rectifier)
Other Datasheets by TEMIC

Full PDF Text Transcription

Click to expand full text
TEMIC Siliconix IRFD9120j9123 P-Channel Enhancement-Mode lransistors Product Summary Part Number IRFD9120 IRFD9123 V(BR)nSS (V) -100 -60 rnS(on) (Q) 0.60 0.80 In (A) -1.0 -0.8 4·PinDIP G D S Thp View S DD P·Channel MOSFET Absolute Maximum Ratings (TA = 25°C Unless Otherwise Noted) Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current ITA=25'C -' TA = 100'C Power Dissipation Operating Junction and Storage Thmperature Range Lead Thmpcrature eh6" from case for 10 sec) ITA = 25'C ITA = 100'C Symbol Vos Vas 10 10M Po TJ. Tstg TL IRFD91Z0 IRFD9123 -100 -60 ±20 ±20 -1.0 -O.S -0.6 -0.5 -S.O -6.4 1.0 1.0 0.4 0.
