K857PE - 4-Quadrant Silicon PIN Photodiode

Datasheet Summary

Description

K857PE is a 4-quadrant photo detector in surface-mount package.

Each quadrant PD has an active area of 1.6 mm2.

Features

Package type: surface-mount.
Technology: epitaxial.
Package form: top view.
Dimensions (L x W x H in mm): 4.72 x 4.72 x 0.75.
AEC-Q101 qualified.
High photo sensitivity.
Floor life: 168 h, MSL 3, according to J-STD-020.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

Vishay

📥 Download Datasheet

Datasheet Details

Part number	K857PE
Manufacturer	Vishay
File Size	232.08 KB
Description	4-Quadrant Silicon PIN Photodiode
Datasheet	K857PE Datasheet

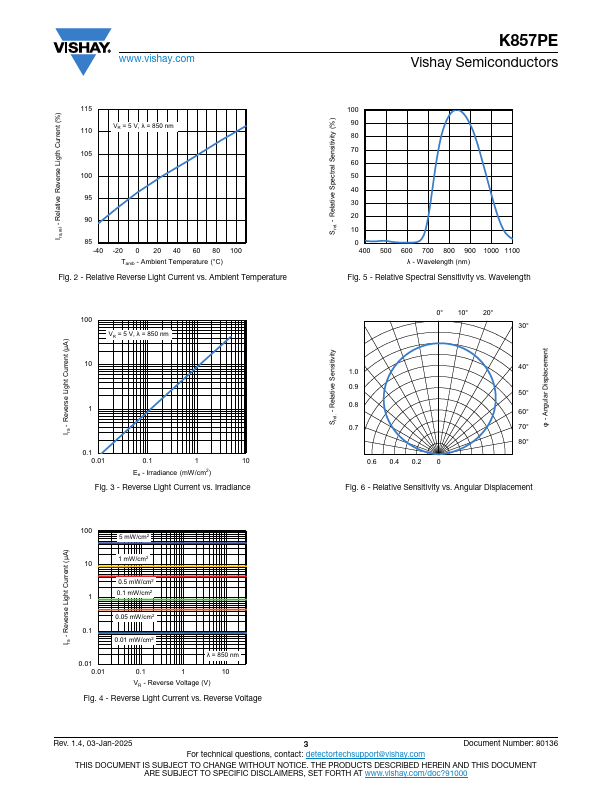

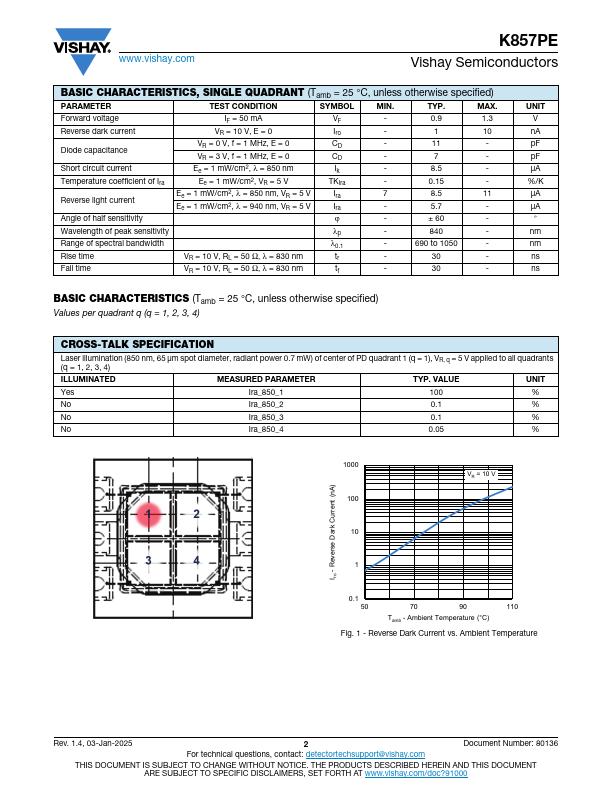

Additional preview pages of the K857PE datasheet.

📁 Similar Datasheet

K851 - Transistor (ETC)
K856 - 2SK856 (Toshiba Semiconductor)

Other Datasheets by Vishay

K857PH - Silicon PIN Photodiode

Full PDF Text Transcription

Click to expand full text

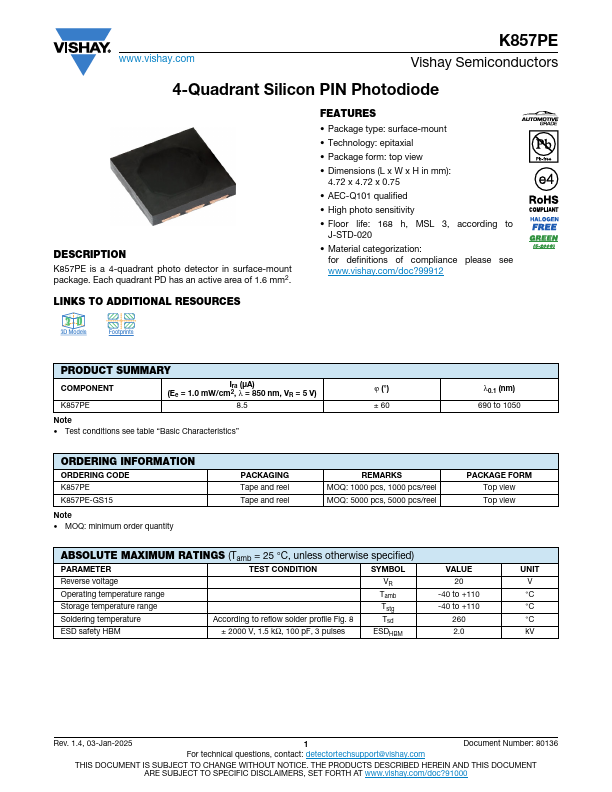

www.vishay.com K857PE Vishay Semiconductors 4-Quadrant Silicon PIN Photodiode DESCRIPTION K857PE is a 4-quadrant photo detector in surface-mount package. Each quadrant PD has an active area of 1.6 mm2. LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Footprints FEATURES • Package type: surface-mount • Technology: epitaxial • Package form: top view • Dimensions (L x W x H in mm): 4.72 x 4.72 x 0.75 • AEC-Q101 qualified • High photo sensitivity • Floor life: 168 h, MSL 3, according to J-STD-020 • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 PRODUCT SUMMARY COMPONENT K857PE Ira (μA) (Ee = 1.0 mW/cm2, λ = 850 nm, VR = 5 V) 8.5 ϕ (°) ± 60 Note • Test conditions see table “Basic Characteristics” λ0.
