LL4150 - Small Signal Fast Switching Diode

LL4150 Description

www.vishay.com LL4150 Vishay Semiconductors Small Signal Fast Switching Diode LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Marking Parametric S.

LL4150 Features

* Silicon epitaxial planar diodes
* Low forward voltage drop
* High forward current capability

LL4150 Applications

* High speed switch and general purpose use in computer and industrial applications PARTS TABLE PART LL4150 ORDERING CODE LL4150GS08 or LL4150GS18 TYPE MARKING - CIRCUIT CONFIGURATION Single REMARKS Tape and reel ABSOLUTE MAXIMUM RATINGS (Tamb = 25 °C, unless otherwise specified) PARA

📥 Download Datasheet

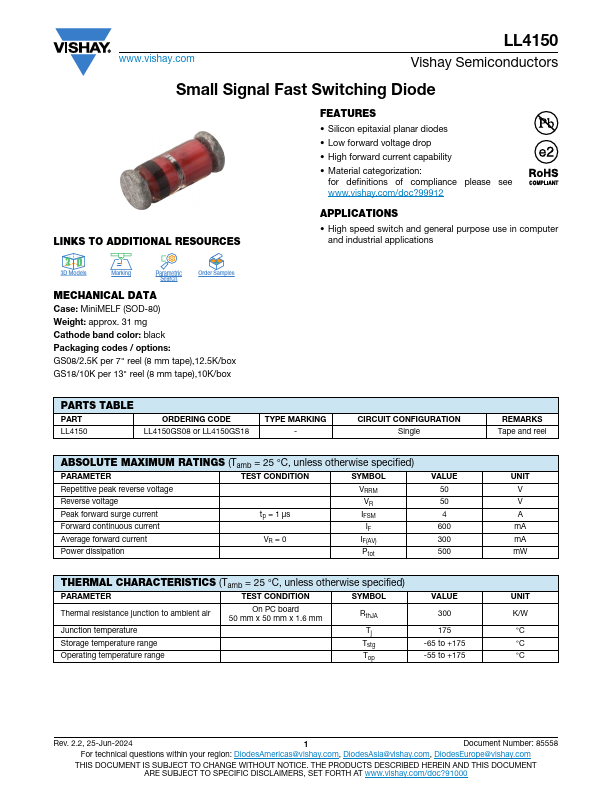

Preview of LL4150 PDF

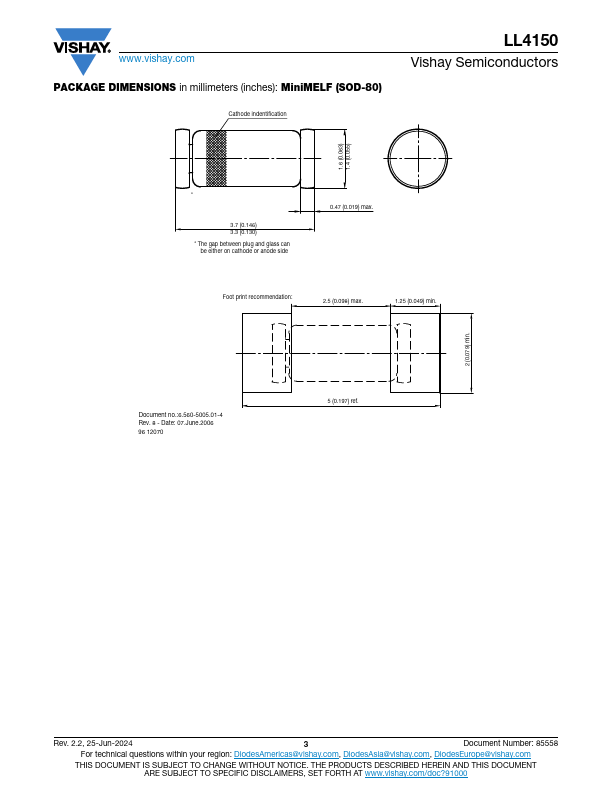

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LL4150
Manufacturer
Vishay ↗
File Size
110.92 KB
Datasheet
LL4150-Vishay.pdf
Description
Small Signal Fast Switching Diode
