M100A Datasheet, Rectifier, Vishay

M100A Features

• Rectifier
• Low forward voltage drop
• Low leakage current
• High forward surge capability
• Solder Dip 260 °C, 40 seconds Typical Applications For use in general

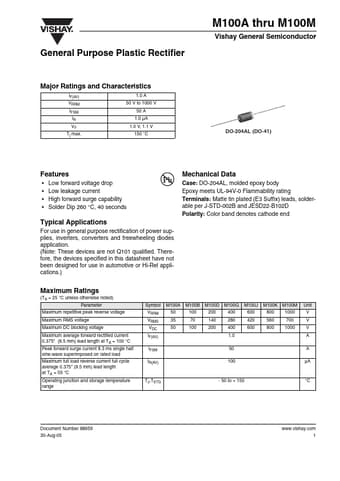

PDF File Details

Part number:

M100A

Manufacturer:

Vishay ↗

File Size:

187.74kb

Download:

📄 Datasheet

Description:

General purpose plastic rectifier.

M100A Application

• Applications For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes application. (Note: These dev
