* Guardring for overvoltage protection
* Low power loss, high efficiency
* Low forward voltage drop
* High forward surge capability
* High frequency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package)
MB3035S
141.17 KB
Schottky barrier rectifier.
www.vishay.com

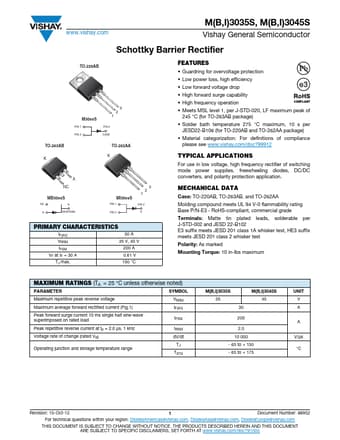

M(B,I)3035S, M(B,I)3045S
Vishay General Semiconductor
Schottky Barrier Rectifier
TO-220AB
TO-263AB K
M30xxS
3 2
1
PIN 1
PIN 2
.
