MB30H100CT Dual Common Cathode High Voltage Schottky Rectifier

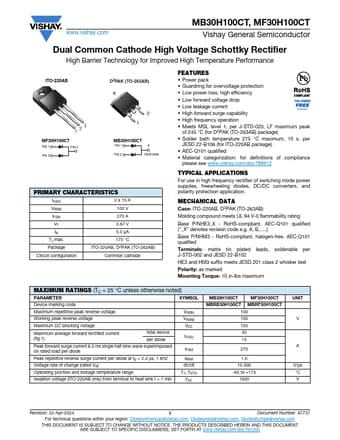

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.vishay.com MB30H100CT, MF30H100CT Vishay General Semiconductor Dual Common Cathode High Voltage Schottky Rectifier High Barrier Technology for I.

📥 Download Datasheet

Preview of MB30H100CT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MB30H100CT
Manufacturer
Vishay ↗
File Size
88.52 KB
Datasheet
MB30H100CT-Vishay.pdf
Description
Dual Common Cathode High Voltage Schottky Rectifier

Features

* Power pack
* Guardring for overvoltage protection
* Low power loss, high efficiency
* Low forward voltage drop
* Low leakage current
* High forward surge capability Available
* High frequency operation
* Meets MSL level 1, per

Applications

* For use in high frequency rectifier of switching mode power supplies, freewheeling diodes, DC/DC converters, and polarity protection application. MECHANICAL DATA Case: ITO-220AB, D2PAK (TO-263AB) Molding compound meets UL 94 V-0 flammability rating Base P/NHE3_X - RoHS-compliant, AEC-Q101 qualified
