MB3045S, MB3035S - Schottky Barrier Rectifier

Vishay

📥 Download Datasheet

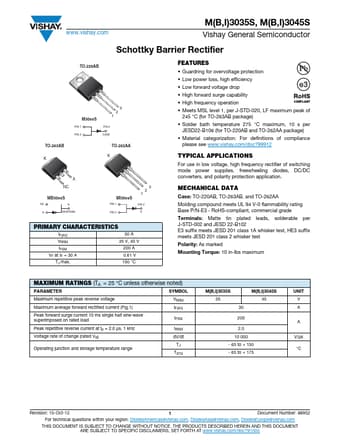

MB3045S Datasheet Preview — This datasheet PDF includes multiple part numbers: MB3045S, MB3035S. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MB3045S, MB3035S
Manufacturer	Vishay ↗
File Size	141.17 KB
Description	Schottky Barrier Rectifier
Datasheet	MB3035S-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: MB3045S, MB3035S. Please refer to the document for exact specifications by model.

MB3045S Product details

Features

Guardring for overvoltage protection.
Low power loss, high efficiency.
Low forward voltage drop.
High forward surge capability.
High frequency operation.
Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package).
Solder bath temperature 275 °C maximum, 10 s per JESD22-B106 (for TO-220AB and TO-262AA package).
Material categorization: For definitions of compliance please see www. vishay. com/doc?99912.
