MMBZ5256, MMBZ5225 - Small Signal Zener Diodes

Vishay

📥 Download Datasheet

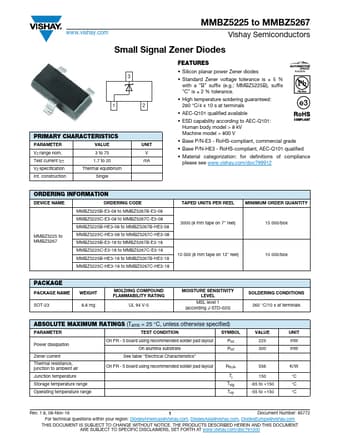

MMBZ5256 Datasheet Preview — This datasheet PDF includes multiple part numbers: MMBZ5256, MMBZ5225. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MMBZ5256, MMBZ5225
Manufacturer	Vishay ↗
File Size	86.04 KB
Description	Small Signal Zener Diodes
Datasheet	MMBZ5225-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: MMBZ5256, MMBZ5225. Please refer to the document for exact specifications by model.

MMBZ5256 Product details

Features

Silicon planar power Zener diodes Available.
Standard Zener voltage tolerance is ± 5 % with a “B” suffix (e. g. : MMBZ5225B), suffix “C” is ± 2 % tolerance.
High temperature soldering guaranteed:  260 °C/4 x 10 s at terminals.
AEC-Q101 qualified available.
ESD capability according to AEC-Q101: Human body model > 8 kV Machine model > 800 V.
Base P/N-E3 - RoHS-compliant, commercial grade.
Base P/N-HE3 - RoHS-compliant, AEC-Q.
