MMBZ5256-G, MMBZ5225-G - Small Signal Zener Diodes

Vishay

📥 Download Datasheet

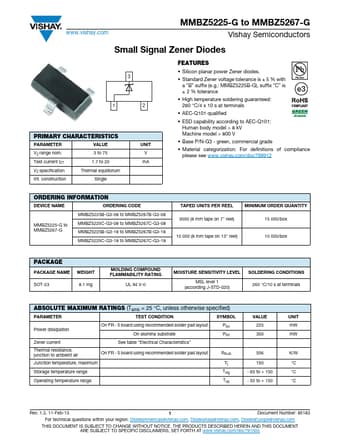

MMBZ5256-G Datasheet Preview — This datasheet PDF includes multiple part numbers: MMBZ5256-G, MMBZ5225-G. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MMBZ5256-G, MMBZ5225-G
Manufacturer	Vishay ↗
File Size	91.67 KB
Description	Small Signal Zener Diodes
Datasheet	MMBZ5225-G-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: MMBZ5256-G, MMBZ5225-G. Please refer to the document for exact specifications by model.

MMBZ5256-G Product details

Features

Silicon planar power Zener diodes.
Standard Zener voltage tolerance is ± 5 % with a “B” suffix (e. g. : MMBZ5225B-G), suffix “C” is ± 2 % tolerance.
High temperature soldering guaranteed: 260 °C/4 x 10 s at terminals.
AEC-Q101 qualified.
ESD capability according to AEC-Q101: Human body model > 8 kV Machine model > 800 V.
Base P/N-G3 - green, commercial grade.
Material categorization: For definitions of compliance please see www. visha.
