MSQ1PJ - Surface-Mount ESD Capability Rectifier

This page provides the datasheet information for the MSQ1PJ, a member of the MSQ1PG Surface-Mount ESD Capability Rectifier family.

Features

  • Very low profile - typical height of 0.65 mm Available.
  • Ideal for automated placement.
  • Oxide planar chip junction.
  • Low forward voltage drop, low leakage current.
  • ESD capability.
  • Meet MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
  • AEC-Q101 qualified available - Automotive ordering code: base P/NHM3.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

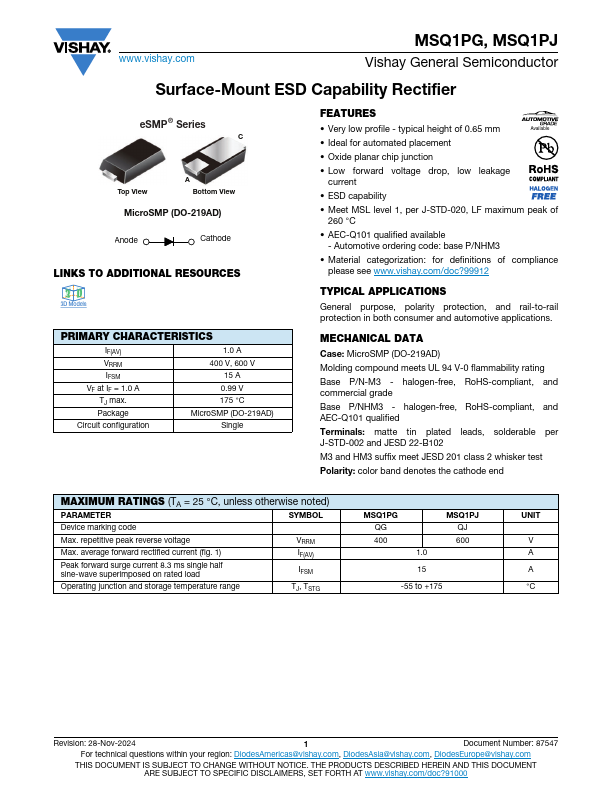

Datasheet preview – MSQ1PJ

Datasheet Details

Part number MSQ1PJ
Manufacturer Vishay
File Size 105.72 KB
Description Surface-Mount ESD Capability Rectifier
Datasheet download datasheet MSQ1PJ Datasheet

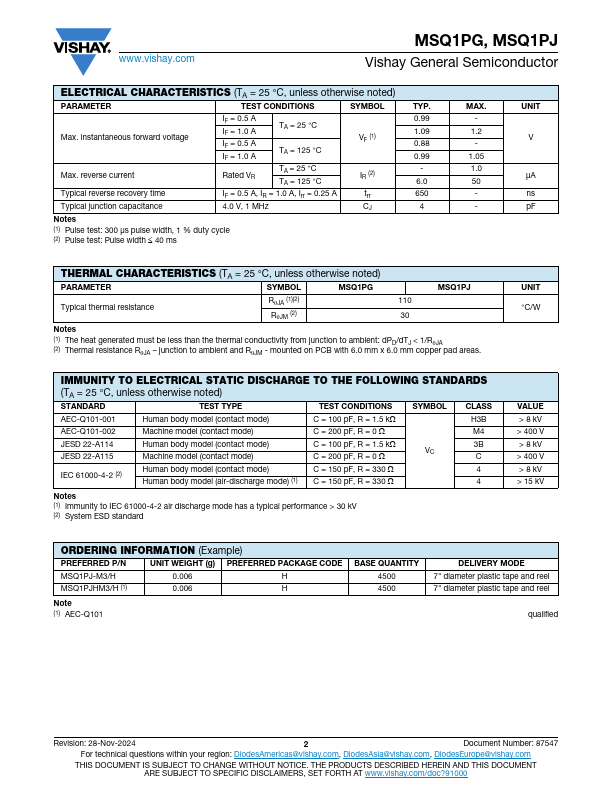

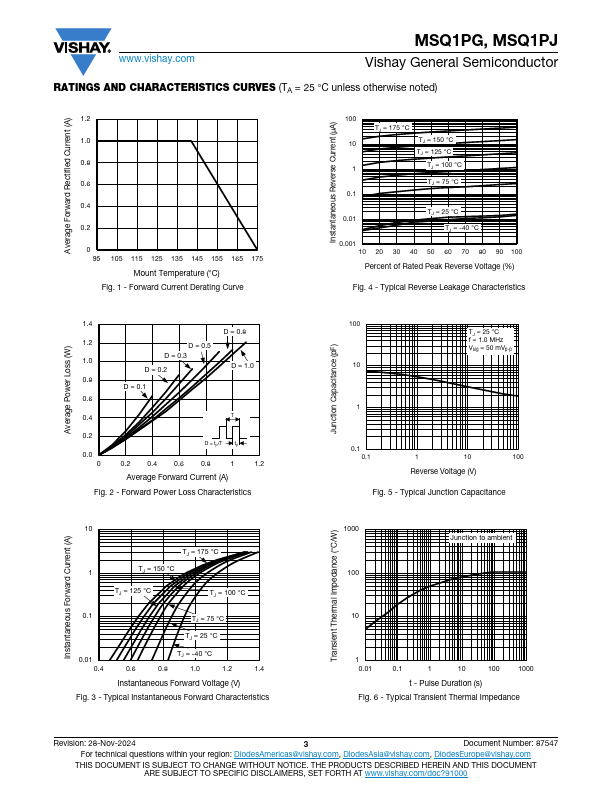

Additional preview pages of the MSQ1PJ datasheet.

📁 Similar Datasheet

  • MSQ108N06G - N-Channel Enhancement Mode MOSFET (CITC)
  • MSQ175N10G - N-Channel Enhancement Mode MOSFET (CITC)
  • MSQ6110C - 0.56 INCH (14.2 MM) FOUR DIGIT STICK DISPLAY (Fairchild Semiconductor)
  • MSQ6111C - 0.56 INCH (14.2 MM) FOUR DIGIT STICK DISPLAY (Fairchild Semiconductor)
  • MSQ6140C - 0.56 INCH (14.2 MM) FOUR DIGIT STICK DISPLAY (Fairchild Semiconductor)
  • MSQ6141C - 0.56 INCH (14.2 MM) FOUR DIGIT STICK DISPLAY (Fairchild Semiconductor)
  • MSQ6410C - 0.56 INCH (14.2 MM) FOUR DIGIT STICK DISPLAY (Fairchild Semiconductor)
  • MSQ6411C - 0.56 INCH (14.2 MM) FOUR DIGIT STICK DISPLAY (Fairchild Semiconductor)
  • MSQ6440C - 0.56 INCH (14.2 MM) FOUR DIGIT STICK DISPLAY (Fairchild Semiconductor)
  • MSQ6441C - 0.56 INCH (14.2 MM) FOUR DIGIT STICK DISPLAY (Fairchild Semiconductor)
Other Datasheets by Vishay
  • MSQ1PG - Surface-Mount ESD Capability Rectifier

Full PDF Text Transcription

Click to expand full text
www.vishay.com MSQ1PG, MSQ1PJ Vishay General Semiconductor Surface-Mount ESD Capability Rectifier eSMP® Series C Top View A Bottom View MicroSMP (DO-219AD) Anode Cathode LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 1.0 A TJ max. Package 1.0 A 400 V, 600 V 15 A 0.99 V 175 °C MicroSMP (DO-219AD) Circuit configuration Single FEATURES • Very low profile - typical height of 0.65 mm Available • Ideal for automated placement • Oxide planar chip junction • Low forward voltage drop, low leakage current • ESD capability • Meet MSL level 1, per J-STD-020, LF maximum peak of 260 °C • AEC-Q101 qualified available - Automotive ordering code: base P/NHM3 • Material categorization: for definitions of compliance please see www.
