MUR420 - Ultrafast Plastic Rectifier

MUR420 Description

www.vishay.com MUR420 Vishay General Semiconductor Ultrafast Plastic Rectifier DO-201AD PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM trr VF TJ max.P.

MUR420 Features

* Glass passivated pellet chip junction
* Ultrafast reverse recovery time
* Low forward voltage drop
* Low leakage current
* Low switching losses, high efficiency
* High forward surge capability Available
* Solder dip 275 °C max. 10 s, p

MUR420 Applications

* For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer and telecommunication. MECHANICAL DATA Case: DO-201AD Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Base P/N

📥 Download Datasheet

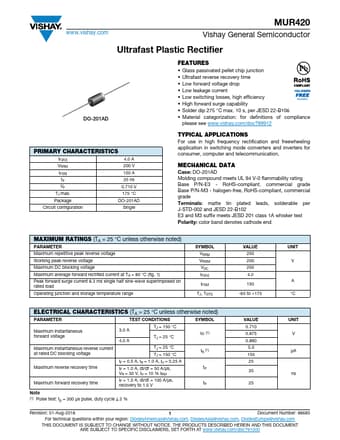

Preview of MUR420 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MUR420
Manufacturer
Vishay ↗
File Size
74.28 KB
Datasheet
MUR420-Vishay.pdf
Description
Ultrafast Plastic Rectifier
