MUR440 - Ultrafast Plastic Rectifier

MUR440 Description

MUR440, MUR460 Vishay General Semiconductor Ultrafast Plastic Rectifier .

MUR440 Features

* Glass passivated chip junction
* Ultrafast reverse recovery time
* Low forward voltage drop
* Low leakage current
* Low switching losses, high efficiency
* High forward surge capability
* Solder dip 275 °C max. 10 s, per JESD 22-B106

MUR440 Applications

* PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM trr VF TJ max. 4.0 A 400 V and 600 V 150 A 50 ns 1.05 V 175 °C For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer, and telecommunication. MECHANICAL DATA Case: DO-201AD Mold

📥 Download Datasheet

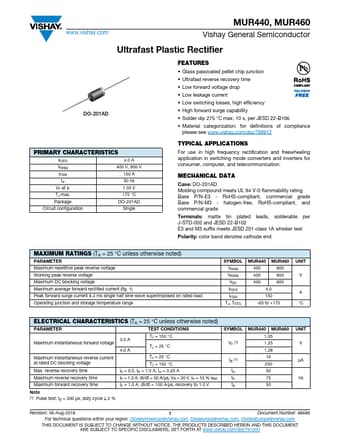

Preview of MUR440 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MUR440
Manufacturer
Vishay ↗
File Size
80.38 KB
Datasheet
MUR440-Vishay.pdf
Description
Ultrafast Plastic Rectifier
