MUR460-M3, MUR440-M3 - Ultrafast Plastic Rectifier

MUR460-M3 Description

www.vishay.com MUR440-M3, MUR460-M3 Vishay General Semiconductor Ultrafast Plastic Rectifier DO-201AD PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM tr.

MUR460-M3 Features

* Glass passivated pellet chip junction
* Ultrafast reverse recovery time
* Low forward voltage drop
* Low leakage current
* Low switching losses, high efficiency
* High forward surge capability
* Solder dip 275 °C max. 10 s, per JESD 22-B106

MUR460-M3 Applications

* For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer, and telecommunication. MECHANICAL DATA Case: DO-201AD Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - halogen-free, RoHS-compliant, and commerc

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MUR460-M3, MUR440-M3. Please refer to the document for exact specifications by model.

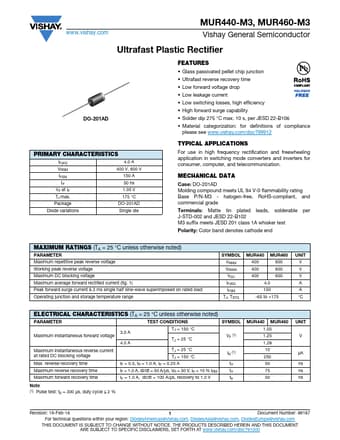

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MUR460-M3, MUR440-M3
Manufacturer
Vishay ↗
File Size
75.27 KB
Datasheet
MUR440-M3-Vishay.pdf
Description
Ultrafast Plastic Rectifier
Note
This datasheet PDF includes multiple part numbers: MUR460-M3, MUR440-M3.
Please refer to the document for exact specifications by model.
