NTCS0603E3683, NTCS0603E3202, Glass Protected NTC Thermistors

www.vishay.com NTCS0603E3T Vishay BCcomponents SMD 0603, Glass Protected NTC Thermistors QUICK REFERENCE DATA PARAMETER VALUE UNIT Resistance v.

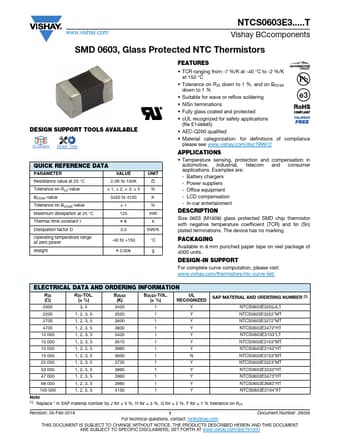

datasheet Preview Page 1 from Datasheet4u.com

NTCS0603E3202-Vishay.pdf

NTCS0603E3683 Datasheet Preview — This datasheet PDF includes multiple part numbers: NTCS0603E3683, NTCS0603E3202. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NTCS0603E3683, NTCS0603E3202

Manufacturer:

Vishay ↗

File Size:

102.76 KB

Description:

Glass Protected NTC Thermistors

Note:

This datasheet PDF includes multiple part numbers: NTCS0603E3683, NTCS0603E3202.
Please refer to the document for exact specifications by model.

Features

* TCR ranging from - 7 %/K at - 40 °C to - 2 %/K at 150 °C
* Tolerance on R25 down to 1 %, and on B25/85 down to 1 %
* Suitable for wave or reflow soldering
* NiSn terminations
* Fully glass coated and protected

Applications

* (file E148885)
* AEC-Q200 qualified
* Material categorization: For definitions of compliance please see www. vishay. com/doc?99912 APPLICATIONS
* Temperature sensing, protection and compensation in automotive, industrial, telecom
