PVHT0402, PVHT - Thin Film Wraparound Chip Resistors

Name: PVHT0402
SKU: PVHT0402-965201

Vishay

The PVHT0402 by Vishay is a Thin Film Wraparound Chip Resistors. Below is the official datasheet preview.

Datasheet Details

Part number	PVHT0402, PVHT
Manufacturer	Vishay
File Size	92.70 KB
Description	Thin Film Wraparound Chip Resistors
Datasheet	PVHT-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: PVHT0402, PVHT. Please refer to the document for exact specifications by model.

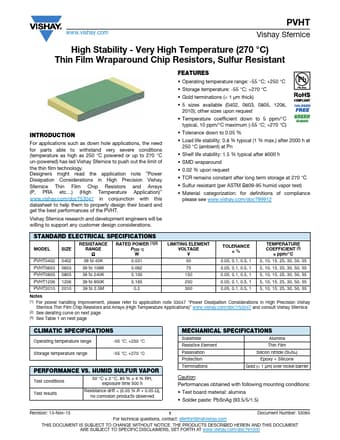

Additional preview pages of the PVHT0402 datasheet.

Operating temperature range: -55 °C; +250 °C.
Storage temperature: -55 °C; +270 °C.
Gold terminations (< 1 μm thick).
5 sizes available (0402, 0603, 0805, 1206, 2010); other sizes upon request.
Temperature coefficient down to 5 ppm/°C typical, 10 ppm/°C maximum (-55 °C; +270 °C).
Tolerance down to 0.05 %.
Load life stability: 0.8 % typical (1 % max. ) after 2000 h at 250 °C (ambient) at Pn.
Shelf life stability: 1.5 % typica.
