PVHT0805, PVHT, Thin Film Wraparound Chip Resistors

www.vishay.com PVHT Vishay Sfernice High Stability - Very High Temperature (270 °C) Thin Film Wraparound Chip Resistors, Sulfur Resistant INTRODUCT.

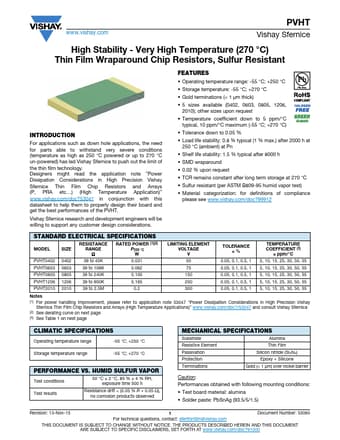

datasheet Preview Page 1 from Datasheet4u.com

PVHT-Vishay.pdf

PVHT0805 Datasheet Preview — This datasheet PDF includes multiple part numbers: PVHT0805, PVHT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PVHT0805, PVHT

Manufacturer:

Vishay ↗

File Size:

92.70 KB

Description:

Thin Film Wraparound Chip Resistors

Note:

This datasheet PDF includes multiple part numbers: PVHT0805, PVHT.
Please refer to the document for exact specifications by model.

Features

* Operating temperature range: -55 °C; +250 °C
* Storage temperature: -55 °C; +270 °C
* Gold terminations (< 1 μm thick)
* 5 sizes available (0402, 0603, 0805, 1206, 2010); other sizes upon request
* Temperature coefficient down to 5 ppm/°C typical, 10 ppm/°C

Applications

* such as down hole applications, the need for parts able to withstand very severe conditions (temperature as high as 250 °C powered or up to 270 °C un-powered) has led Vishay Sfernice to push out the limit of the thin film technology. Designers might read the application note “Power Dissipation Consi
