PVHT1206, PVHT Datasheet - Vishay

PVHT1206 Thin Film Wraparound Chip Resistors

www.vishay.com PVHT Vishay Sfernice High Stability - Very High Temperature (270 °C) Thin Film Wraparound Chip Resistors, Sulfur Resistant INTRODUCTION For applications such as down hole applications, the need for parts able to withstand very severe conditions (temperature as high as 250 °C powered or up to 270 °C un-powered) has led Vishay Sfernice to push out the limit of the thin film technology. Designers might read the application note “Power Dissipation Considerations in High Precision V.

PVHT1206 Features

* Operating temperature range: -55 °C; +250 °C

* Storage temperature: -55 °C; +270 °C

* Gold terminations (< 1 μm thick)

* 5 sizes available (0402, 0603, 0805, 1206, 2010); other sizes upon request

* Temperature coefficient down to 5 ppm/°C typical, 10 ppm/°C

PVHT-Vishay.pdf

This datasheet PDF includes multiple part numbers: PVHT1206, PVHT. Please refer to the document for exact specifications by model.

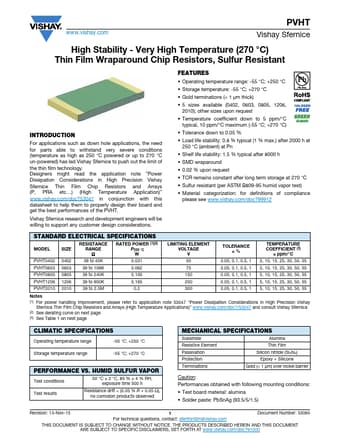

PVHT1206 Datasheet Preview Page 2 PVHT1206 Datasheet Preview Page 3

Datasheet Details

Part number:

PVHT1206, PVHT

Manufacturer:

Vishay ↗

File Size:

92.70 KB

Description:

Thin film wraparound chip resistors.

Note:

This datasheet PDF includes multiple part numbers: PVHT1206, PVHT.
Please refer to the document for exact specifications by model.
