RS3D - Surface Mount Fast Switching Rectifier

Product Overview

Vishay

📥 Download Datasheet

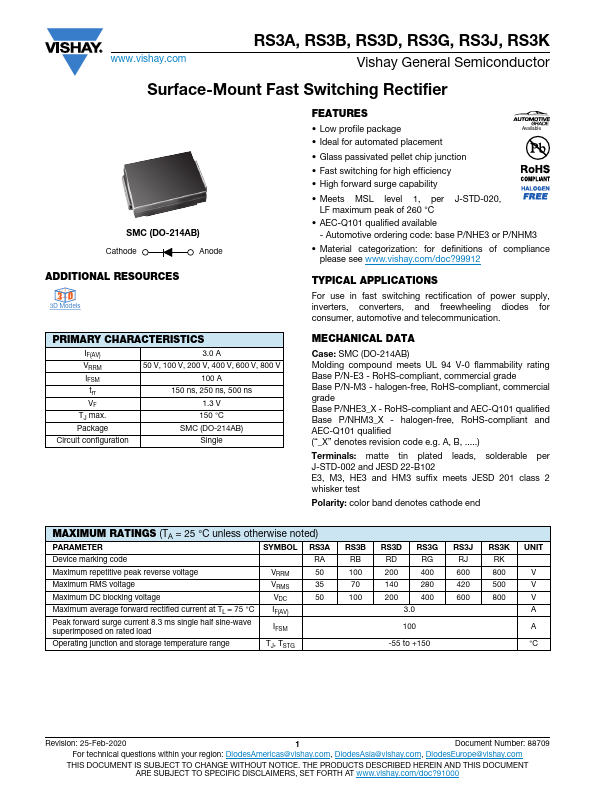

RS3D Surface Mount Fast Switching Rectifier by Vishay - Datasheet Preview — Datasheet preview – RS3D

Datasheet Details

Part number	RS3D
Manufacturer	Vishay
File Size	90.20 KB
Description	Surface Mount Fast Switching Rectifier
Datasheet	RS3D Datasheet
Note	This datasheet PDF includes multiple part numbers: RS3D, RS3A. Please refer to the document for exact specifications by model.

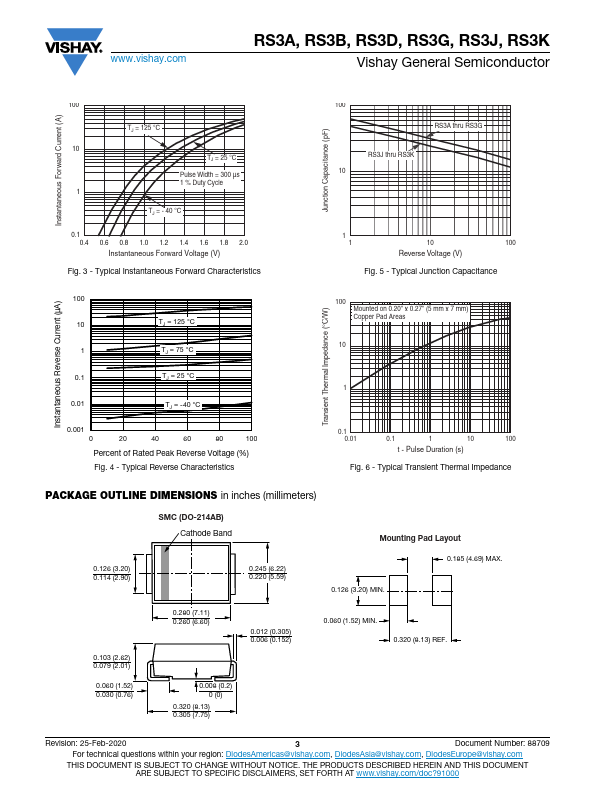

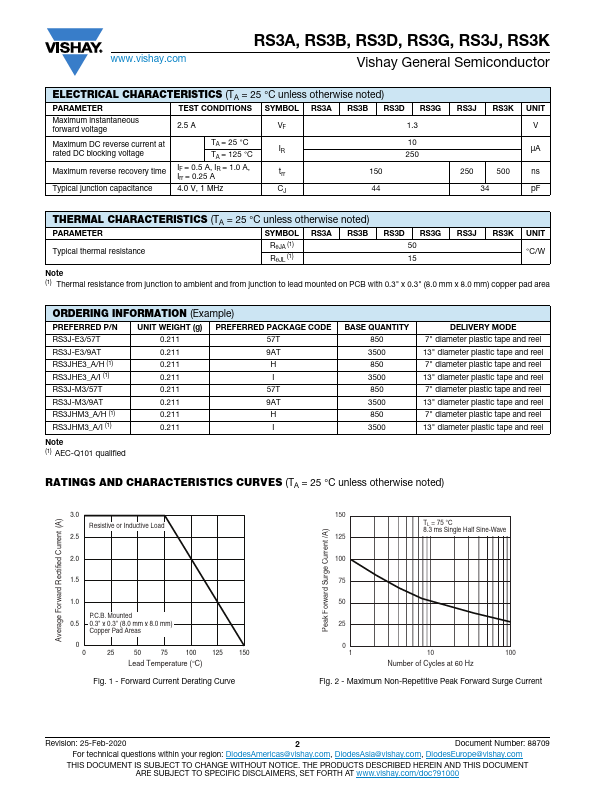

Additional preview pages of the RS3D datasheet.

Product details

Features

Low profile package Available.
Ideal for automated placement.
Glass passivated pellet chip junction.
Fast switching for high efficiency.
High forward surge capability.
Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
AEC-Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
