RS3J, RS3A Surface Mount Fast Switching Rectifier

RS3J Description

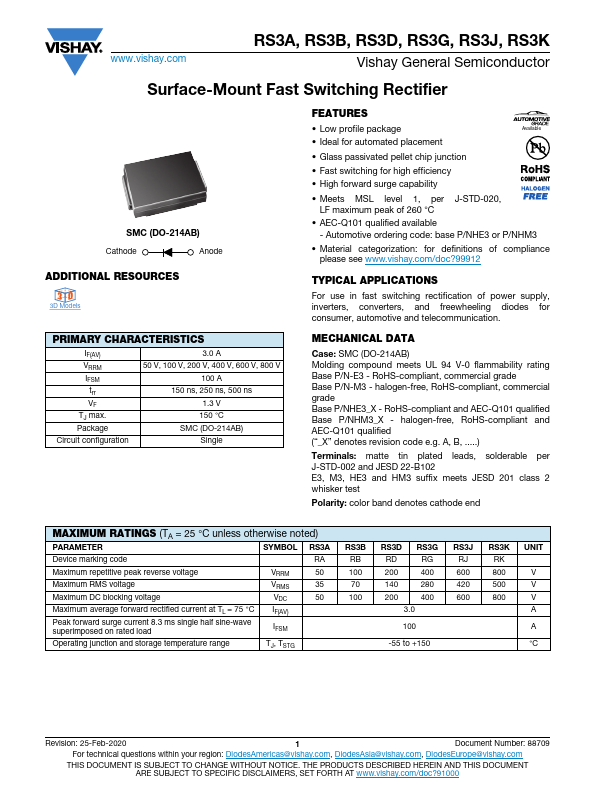

www.vishay.com RS3A, RS3B, RS3D, RS3G, RS3J, RS3K Vishay General Semiconductor Surface-Mount Fast Switching Rectifier SMC (DO-214AB) Cathode Anod.

RS3J Features

* Low profile package Available
* Ideal for automated placement
* Glass passivated pellet chip junction
* Fast switching for high efficiency
* High forward surge capability
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

RS3J Applications

* For use in fast switching rectification of power supply, inverters, converters, and freewheeling diodes for consumer, automotive and telecommunication. MECHANICAL DATA Case: SMC (DO-214AB) Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Base P/N-M

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS3J, RS3A. Please refer to the document for exact specifications by model.

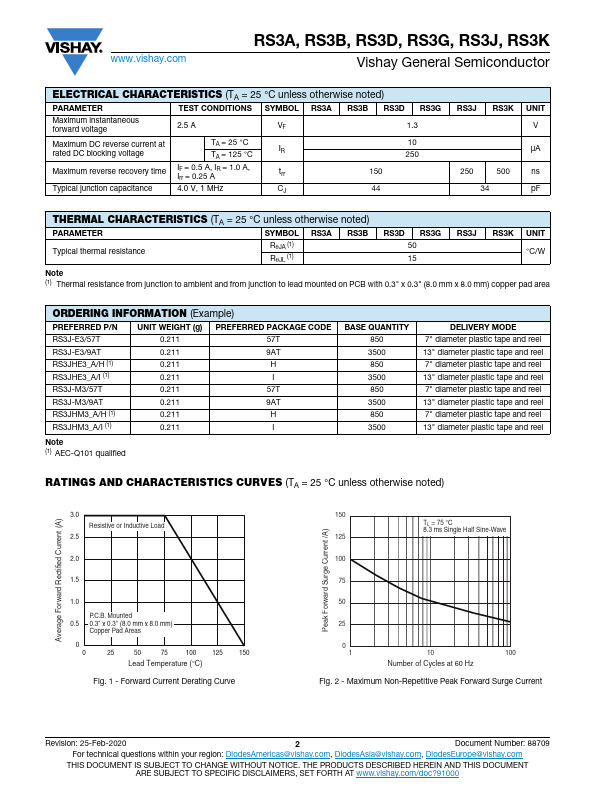

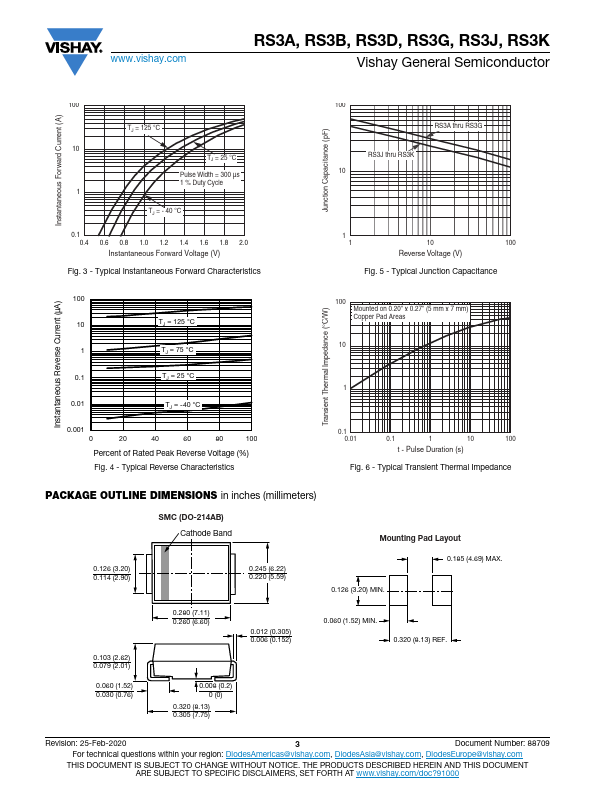

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS3J, RS3A
Manufacturer
Vishay ↗
File Size
90.20 KB
Datasheet
RS3A-Vishay.pdf
Description
Surface Mount Fast Switching Rectifier
Note
This datasheet PDF includes multiple part numbers: RS3J, RS3A.
Please refer to the document for exact specifications by model.
