SB160, SB110 Schottky Barrier Plastic Rectifier

SB160 Description

www.vishay.com SB110, SB120, SB130, SB140, SB150, SB160 Vishay General Semiconductor Schottky Barrier Plastic Rectifier DO-41 (DO-204AL) PRIMARY C.

SB160 Features

* Guardring for overvoltage protection
* Very small conduction losses
* Extremely fast switching
* Low forward voltage drop
* High forward surge capability
* High frequency operation
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Mat

SB160 Applications

* For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. MECHANICAL DATA Case: DO-41 (DO-204AL) Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Terminals: matte tin plated

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB160, SB110. Please refer to the document for exact specifications by model.

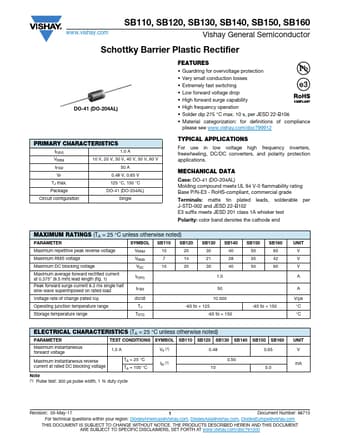

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB160, SB110
Manufacturer
Vishay ↗
File Size
72.00 KB
Datasheet
SB110-Vishay.pdf
Description
Schottky Barrier Plastic Rectifier
Note
This datasheet PDF includes multiple part numbers: SB160, SB110.
Please refer to the document for exact specifications by model.
