* Guardring for overvoltage protection
* Very small conduction losses
* Extremely fast switching
* Low forward voltage drop
* High forward surge capability
* High frequency operation
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* Mat
SB110
72.00 KB
Schottky barrier plastic rectifier.
www.vishay.com

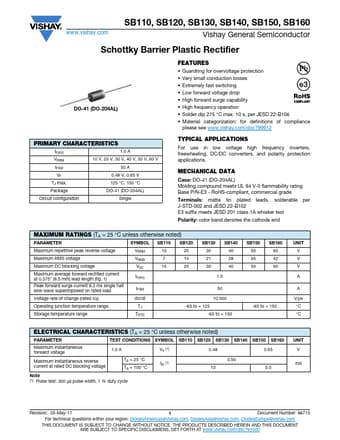

SB110, SB120, SB130, SB140, SB150, SB160
Vishay General Semiconductor
Schottky Barrier Plastic Rectifier
DO-41 (DO-204AL)
PRIMARY C.
