SBL25L20CT - Common Cathode Schottky Rectifier

SBL25L20CT Description

www.vishay.com SBL25LxxCT, SBLF25LxxCT, SBLB25LxxCT Vishay General Semiconductor Dual Low VF Common Cathode Schottky Rectifier TO-220AB ITO-220AB .

SBL25L20CT Features

* Power pack
* Low power loss, high efficiency
* Very low forward voltage drop
* High forward surge capability
* High frequency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package)
* Solder bath tempera

SBL25L20CT Applications

* For use in low voltage, high frequency inverters, switching mode power supplies, freewheeling diodes, OR-ing diodes, DC/DC converters, and polarity protection application. MECHANICAL DATA Case: TO-220AB, ITO-220AB, TO-263AB Molding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-com

📥 Download Datasheet

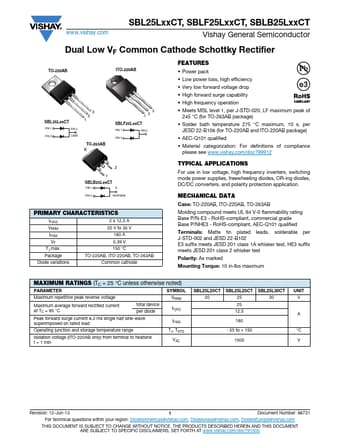

Preview of SBL25L20CT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SBL25L20CT
Manufacturer
Vishay ↗
File Size
136.20 KB
Datasheet
SBL25L20CT-Vishay.pdf
Description
Common Cathode Schottky Rectifier
