SE20DB - Surface Mount ESD Capability Rectifiers

Datasheet Summary

Features

  • Very low profile - typical height of 1.7 mm.
  • Ideal for automated placement.
  • Oxide planar chip junction.
  • Low forward voltage drop.
  • ESD capability.
  • AEC-Q101 qualified.
  • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

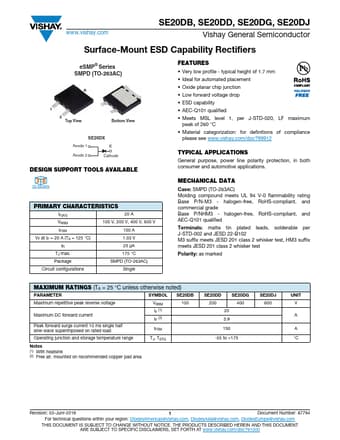

Datasheet preview – SE20DB

Datasheet Details

Part number SE20DB
Manufacturer Vishay
File Size 112.52 KB
Description Surface Mount ESD Capability Rectifiers
Datasheet download datasheet SE20DB Datasheet
Additional preview pages of the SE20DB datasheet.

📁 Similar Datasheet

  • SE2002-DC70A - High speed thermal printhead (Rohm)
  • SE2002-DC90A - High speed thermal printhead (Rohm)
  • SE2003-DC70A - High speed thermal printhead (Rohm)
  • SE2003-DC90A - High speed thermal printhead (Rohm)
  • SE2004-DC70A - High speed thermal printhead (Rohm)
  • SE2004-DC90A - High speed thermal printhead (Rohm)
  • SE2102 - Small Signal MOSFET (Sino-IC)
  • SE2302GD - N-Channel Plastic-Encapsulate MOSFETS (WILLAS)
  • SE2305GD - P-Channel High Density Trench MOSFET (WILLAS)
  • SE2310 - SOT-23 Plastic-Encapsulate MOSFETS (WILLAS)
Other Datasheets by Vishay
  • SE20DD - Surface Mount ESD Capability Rectifiers
  • SE20DG - Surface Mount ESD Capability Rectifiers
  • SE20DJ - Surface Mount ESD Capability Rectifiers
  • SE20ND - Surface-Mount Standard Rectifier
  • SE20NG - Surface-Mount Standard Rectifier
  • SE20NJ - Surface-Mount Standard Rectifier
  • SE20PAB - Surface-Mount ESD Capability Rectifiers
  • SE20PAD - Surface-Mount ESD Capability Rectifiers

Full PDF Text Transcription

Click to expand full text
www.vishay.com SE20DB, SE20DD, SE20DG, SE20DJ Vishay General Semiconductor Surface-Mount ESD Capability Rectifiers eSMP® Series SMPD (TO-263AC) K 1 2 Top View Bottom View SE20DX Anode 1 K Anode 2 Cathode DESIGN SUPPORT TOOLS AVAILABLE 3D 3D 3D Models PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 20 A (TA = 125 °C) IR TJ max. Package 20 A 100 V, 200 V, 400 V, 600 V 150 A 1.03 V 25 μA 175 °C SMPD (TO-263AC) Circuit configurations Single FEATURES • Very low profile - typical height of 1.7 mm • Ideal for automated placement • Oxide planar chip junction • Low forward voltage drop • ESD capability • AEC-Q101 qualified • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C • Material categorization: for definitions of compliance please see www.vishay.
