SE20DD Datasheet - Vishay

Surface Mount ESD Capability Rectifiers

SE20DD Features

* Very low profile - typical height of 1.7 mm

* Ideal for automated placement

* Oxide planar chip junction

* Low forward voltage drop

* ESD capability

* AEC-Q101 qualified

* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

SE20DD Datasheet (112.52 KB)

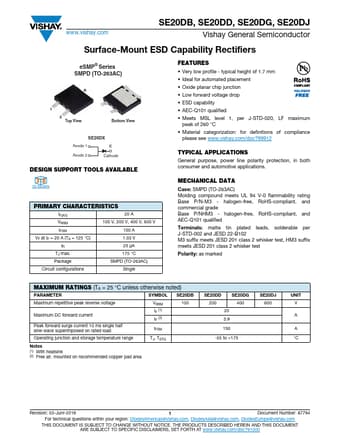

Preview of SE20DD PDF

Datasheet Details

Part number:

SE20DD

Manufacturer:

Vishay ↗

File Size:

112.52 KB

Description:

Surface mount esd capability rectifiers.
www.vishay.com SE20DB, SE20DD, SE20DG, SE20DJ Vishay General Semiconductor Surface-Mount ESD Capability Rectifiers eSMP® Series SMPD (TO-263AC) K .
