SE20DG, SE20DB, Surface Mount ESD Capability Rectifiers

www.vishay.com SE20DB, SE20DD, SE20DG, SE20DJ Vishay General Semiconductor Surface-Mount ESD Capability Rectifiers eSMP® Series SMPD (TO-263AC) K .

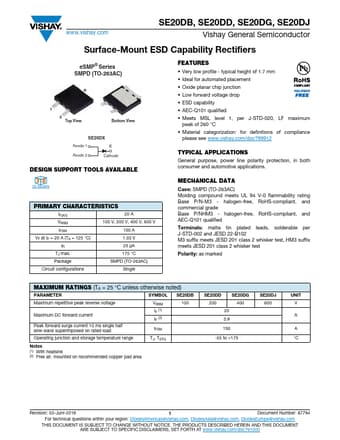

datasheet Preview Page 1 from Datasheet4u.com

SE20DB-Vishay.pdf

SE20DG Datasheet Preview — This datasheet PDF includes multiple part numbers: SE20DG, SE20DB. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SE20DG, SE20DB

Manufacturer:

Vishay ↗

File Size:

112.52 KB

Description:

Surface Mount ESD Capability Rectifiers

Note:

This datasheet PDF includes multiple part numbers: SE20DG, SE20DB.
Please refer to the document for exact specifications by model.

Features

* Very low profile - typical height of 1.7 mm
* Ideal for automated placement
* Oxide planar chip junction
* Low forward voltage drop
* ESD capability
* AEC-Q101 qualified
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

Applications

* General purpose, power line polarity protection, in both consumer and automotive applications. MECHANICAL DATA Case: SMPD (TO-263AC) Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade Base P/NHM3 - halogen-free, RoHS-compliant, and
