SFH614A Optocoupler

SFH614A Description

VISHAY SFH614A Vishay Semiconductors Optocoupler, Phototransistor Output, 300 V BVCEO .
The SFH614A features a high collector-emitter voltage and high isolation voltage.

SFH614A Features

* High Isolation Test Voltage, 5300 VRMS
* High Collector-Emitter Voltage, VCEO = 300 V
* Standard Plastic DIP-4 Package Agency Approvals
* UL File #E52744 System Code H or J

SFH614A Applications

* All operating parameters must be validated for each customer application by the customer. Should the buyer use Vishay Semiconductors products for any unintended or unauthorized application, the buyer shall indemnify Vishay Semiconductors against all claims, costs, damages, and expenses, arising out

📥 Download Datasheet

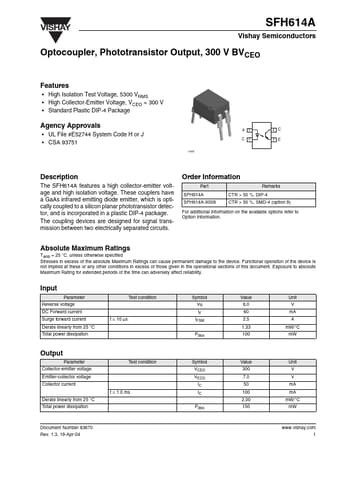

Preview of SFH614A PDF
datasheet Preview Page 2 datasheet Preview Page 3
