SIS426DN N-Channel 20V MOSFET

Vishay

Description

N-Channel 20-V (D-S) MOSFET SiS426DN Vishay Siliconix PRODUCT SUMMARY VDS (V) RDS(on) () 0.0045 at VGS = 10 V 20 0.0058 at VGS = 4.5 V ID (A)f .

📥 Download Datasheet

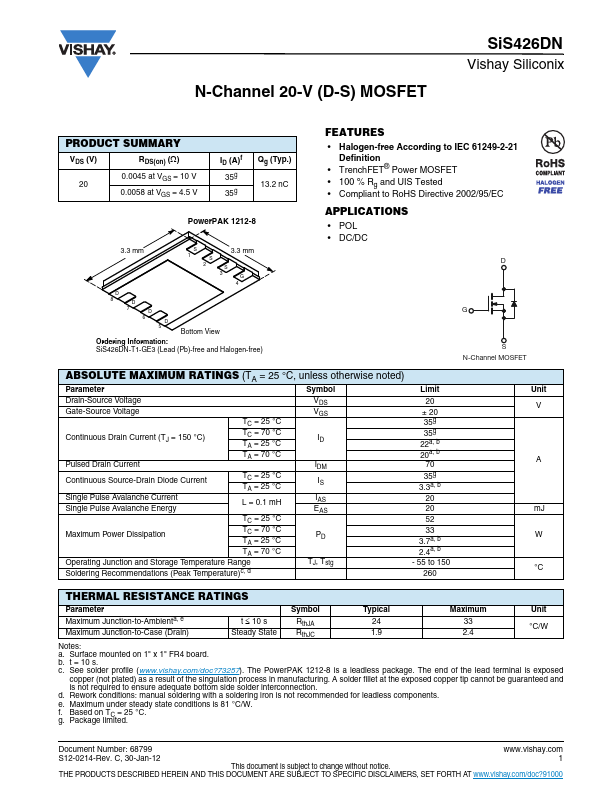

SIS426DN Datasheet Preview — Preview of SIS426DN PDF

Datasheet Specifications

Part number: SIS426DN
Manufacturer: Vishay ↗
File Size: 537.60 KB
Datasheet: SIS426DN_Vishay.pdf
Description: N-Channel 20V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested
* Compliant to RoHS Directive 2002/95/EC PowerPAK 1212-8 3.3 mm S 1 S 3.3 mm 2 S 3 G 4 D 8 D 7 D 6 D 5 Bottom View Ordering Information: SiS426DN-

Applications

* POL
* DC/DC D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 20 V VGS ± 20 TC = 25 °C 35g Continuous Drain Current (TJ = 150 °C) TC = 70 °C TA = 25 °C ID 3
