* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested
* 100 % UIS Tested
* Compliant to RoHS Directive 2002/95/EC PowerPAK® 1212-8 3.30 mm S 1 2 3 S S 3.30 mm APPLICATIONS
* DC/DC Converter - Notebook -

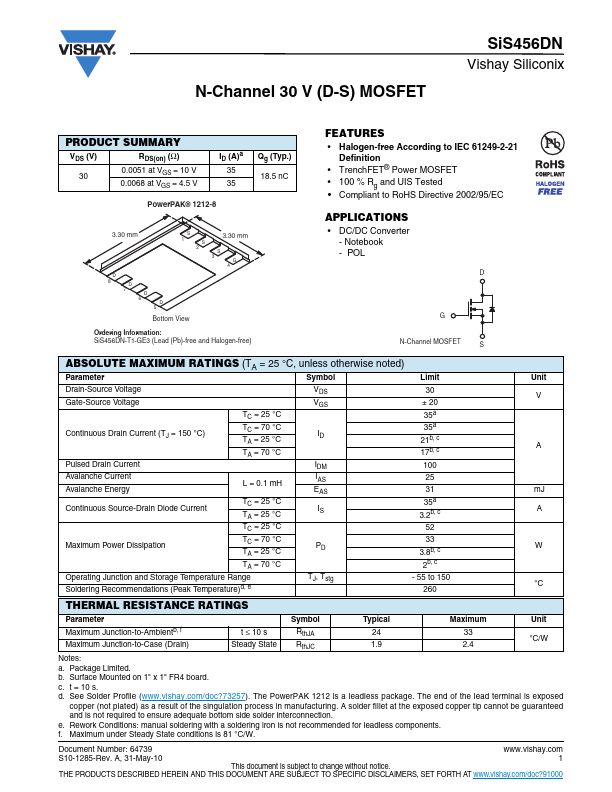

SIS456DN Datasheet (593.09 KB)
SIS456DN
593.09 KB
N-channel mosfet.
SiS456DN
Vishay Siliconix
N-Channel 30 V (D-S) MOSFET
PRODUCT SUMMARY
VDS (V) 30 RDS(on) (Ω) 0.0051 at VGS = 10 V 0.0068 at VGS = 4.5 V ID (A)a 35 35.
