SM15T68A, SM15T Datasheet - Vishay

SM15T68A Surface Mount Transient Voltage Suppressors

www.vishay.com SM15T Series Vishay General Semiconductor Surface Mount TRANSZORB® Transient Voltage Suppressors Cathode SMC (DO-214AB) Anode (unidirectional) (bidirectional) LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models PRIMARY CHARACTERISTICS VWM VBR unidirectional VBR bidirectional PPPM PD IFSM (uni-directional only) TJ max. Polarity 5.8 V to 188 V 6.8 V to 220 V 6.8 V to 220 V 1500 W 6.5 W 200 A 150 °C Unidirectional, bidirectional Package SMC (DO-214AB) DEVICES FOR BIDIRECTION A.

SM15T68A Features

* Low profile package Available

* Ideal for automated placement

* Glass passivated chip junction

* Available in unidirectional and bidirectional

* 1500 W peak pulse power capability with a 10/1000 μs waveform

* Excellent clamping capability Avai

SM15T-Vishay.pdf

This datasheet PDF includes multiple part numbers: SM15T68A, SM15T. Please refer to the document for exact specifications by model.

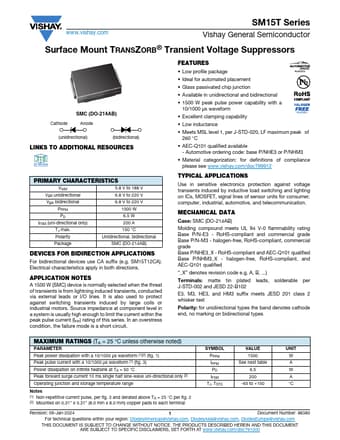

SM15T68A Datasheet Preview Page 2 SM15T68A Datasheet Preview Page 3

Datasheet Details

Part number:

SM15T68A, SM15T

Manufacturer:

Vishay ↗

File Size:

108.55 KB

Description:

Surface mount transient voltage suppressors.

Note:

This datasheet PDF includes multiple part numbers: SM15T68A, SM15T.
Please refer to the document for exact specifications by model.
