SM8S24CA, SM8S10CA Transient Voltage Suppressors

SM8S24CA Description

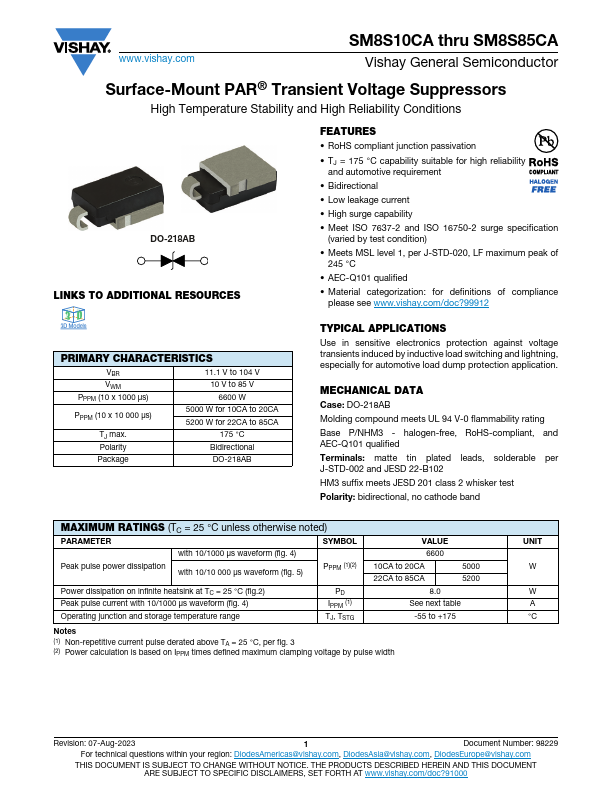

www.vishay.com SM8S10CA thru SM8S85CA Vishay General Semiconductor Surface-Mount PAR® Transient Voltage Suppressors High Temperature Stability and H.

SM8S24CA Features

* RoHS compliant junction passivation
* TJ = 175 °C capability suitable for high reliability and automotive requirement
* Bidirectional
* Low leakage current
* High surge capability
* Meet ISO 7637-2 and ISO 16750-2 surge specification (varied by test

SM8S24CA Applications

* Use in sensitive electronics protection against voltage transients induced by inductive load switching and lightning, especially for automotive load dump protection application. MECHANICAL DATA Case: DO-218AB Molding compound meets UL 94 V-0 flammability rating Base P/NHM3 - halogen-free, RoHS-compl

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM8S24CA, SM8S10CA. Please refer to the document for exact specifications by model.

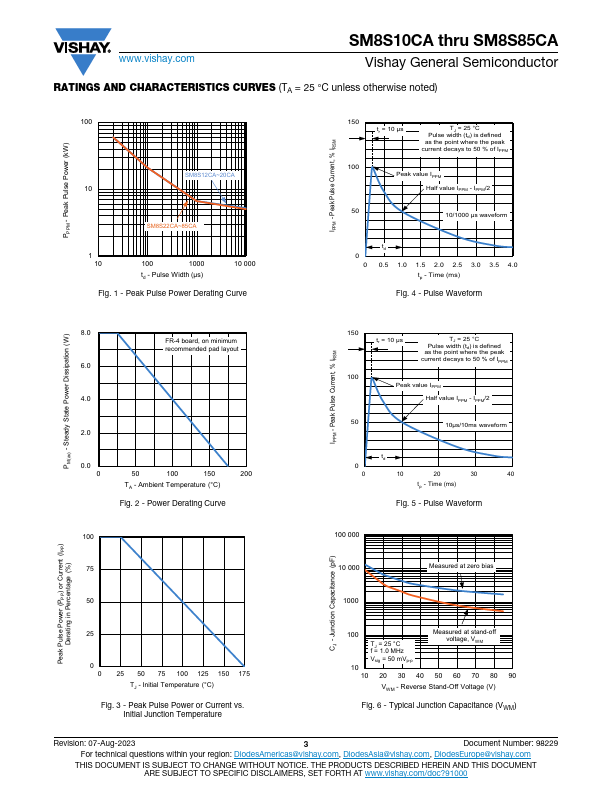

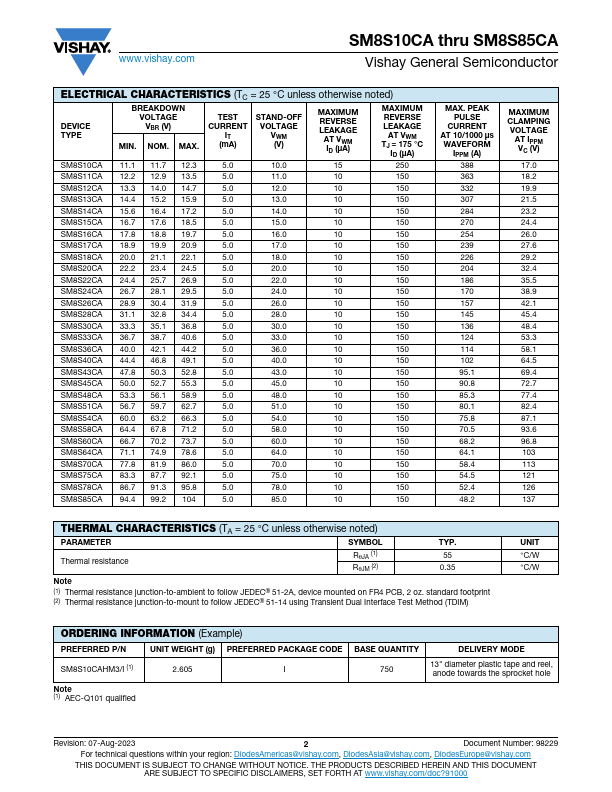

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SM8S24CA, SM8S10CA
Manufacturer
Vishay ↗
File Size
144.80 KB
Datasheet
SM8S10CA-Vishay.pdf
Description
Transient Voltage Suppressors
Note
This datasheet PDF includes multiple part numbers: SM8S24CA, SM8S10CA.
Please refer to the document for exact specifications by model.
