SUD50P06-15 P-Channel MOSFET

Vishay

Description

www.vishay.com SUD50P06-15 Vishay Siliconix P-Channel 60 V (D-S) MOSFET TO-252 Drain connected to tab .

📥 Download Datasheet

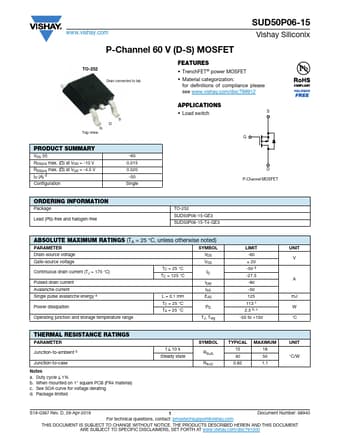

SUD50P06-15 Datasheet Preview — Preview of SUD50P06-15 PDF

Datasheet Specifications

Part number: SUD50P06-15
Manufacturer: Vishay ↗
File Size: 227.57 KB
Datasheet: SUD50P06-15-Vishay.pdf
Description: P-Channel MOSFET

Features

* TrenchFET® power MOSFET
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 S D G Top View PRODUCT SUMMARY VDS (V) RDS(on) max. () at VGS = -10 V RDS(on) max. () at VGS = -4.5 V ID (A) d Configuration -60 0.015 0.020 -50 Single APPLICA

Applications

* Load switch S G D P-Channel MOSFET ORDERING INFORMATION Package Lead (Pb)-free and halogen-free TO-252 SUD50P06-15-GE3 SUD50P06-15-T4-GE3 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-source voltage VDS Gate-source voltage Continuous drain c
