Si7336ADP - N-Channel 30-V MOSFET

Si7336ADP Description

N-Channel 30-V (D-S) MOSFET Si7336ADP Vishay Siliconix PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.0030 at VGS = 10 V 30 0.0040 at VGS = 4.5 V ID (A) .

Si7336ADP Features

* Halogen-free available
* Ultra-Low On-Resistance Using High Density TrenchFET® Gen II Power MOSFET Technology RoHS COMPLIANT
* Qg Optimized
* New Low Thermal Resistance PowerPAK® Package with Low 1.07 mm Profile
* 100 % Rg Tested
* 100 % UIS Te

Si7336ADP Applications

* Low-Side DC/DC Conversion - Notebook - Server - Workstation D G Bottom View Ordering Information: Si7336ADP-T1-E3 (Lead (Pb)-free) Si7336ADP-T1-GE3 (Lead (Pb)-free and Halogen-free) S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limi

📥 Download Datasheet

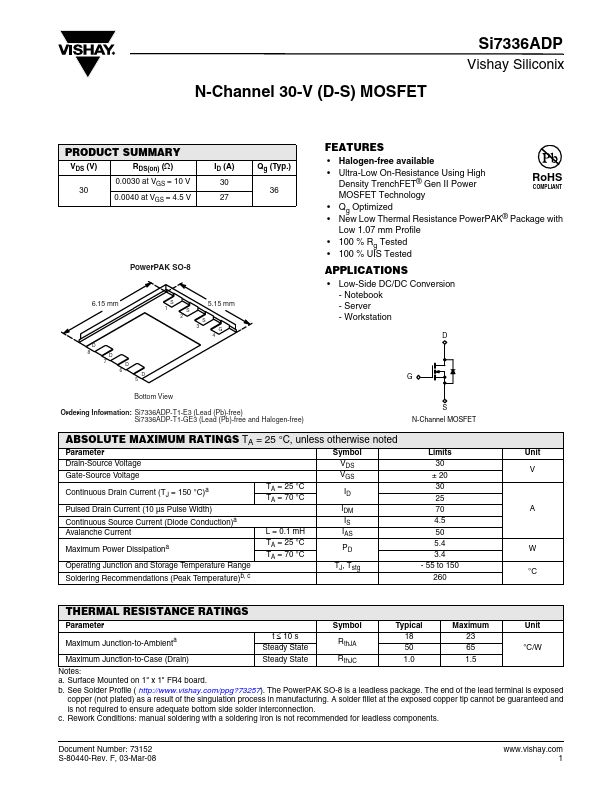

Preview of Si7336ADP PDF

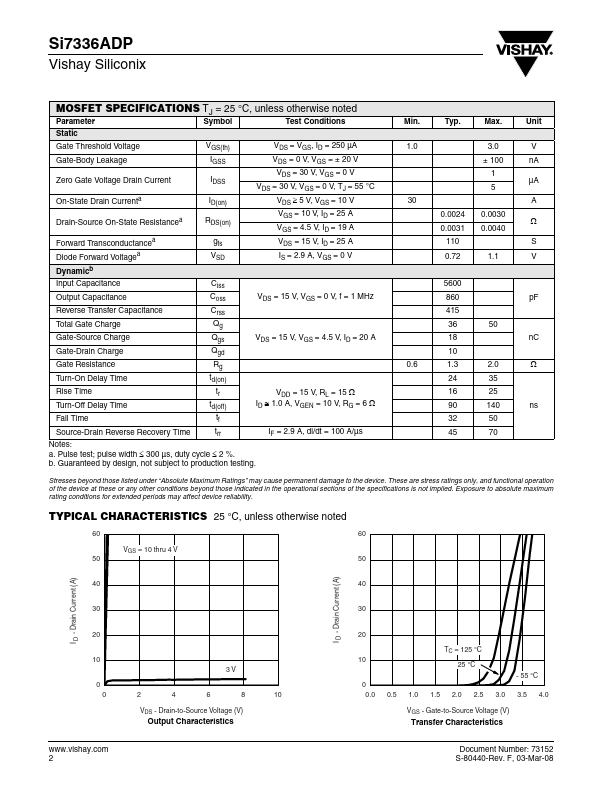

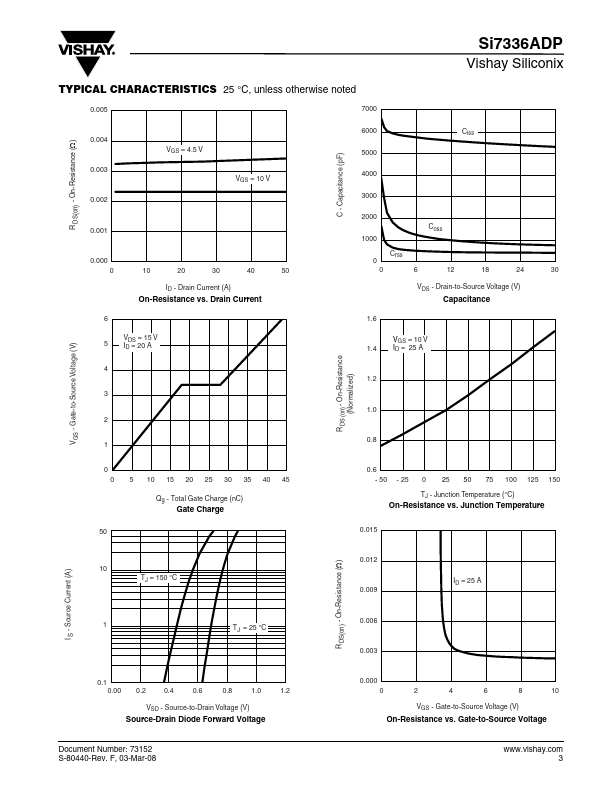

datasheet Preview Page 2 datasheet Preview Page 3
