Si7315DN - P-Channel 150V MOSFET

Si7315DN Description

www.vishay.com Si7315DN Vishay Siliconix P-Channel 150 V (D-S) MOSFET PowerPAK® 1212-8 Single D D8 D7 D6 5 3.3 mm 1 Top View 3.3 mm PRODUCT SUM.

Si7315DN Features

* TrenchFET® power MOSFET
* Low thermal resistance PowerPAK® Package with small size
* 100 % Rg and UIS tested

Si7315DN Applications

* Active clamp in intermediate DC/DC power supplies
* H-bridge high side switch for G lighting application
* Load switch Available S D P-Channel MOSFET ORDERING INFORMATION Package Lead (Pb)-free and halogen-free PowerPAK 1212-8 Si7315DN-T1-GE3 ABSOLUTE MAXIMUM RATI

📥 Download Datasheet

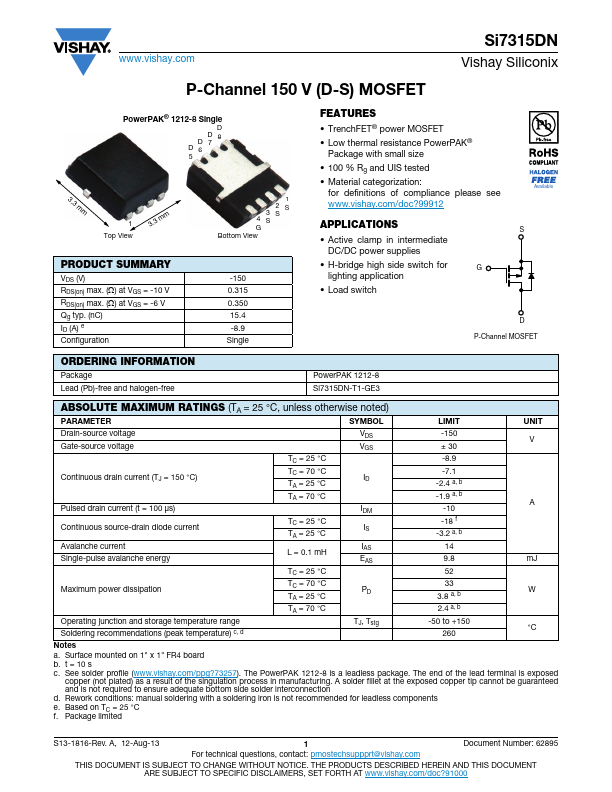

Preview of Si7315DN PDF

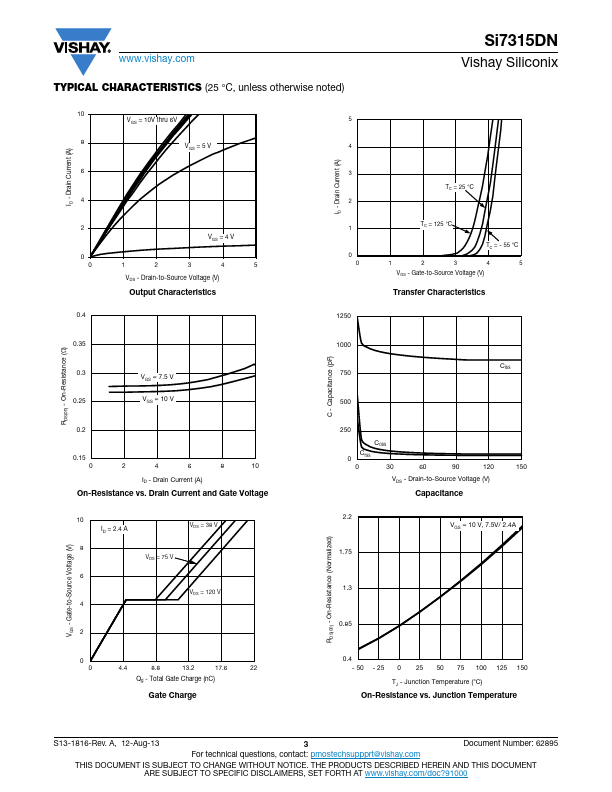

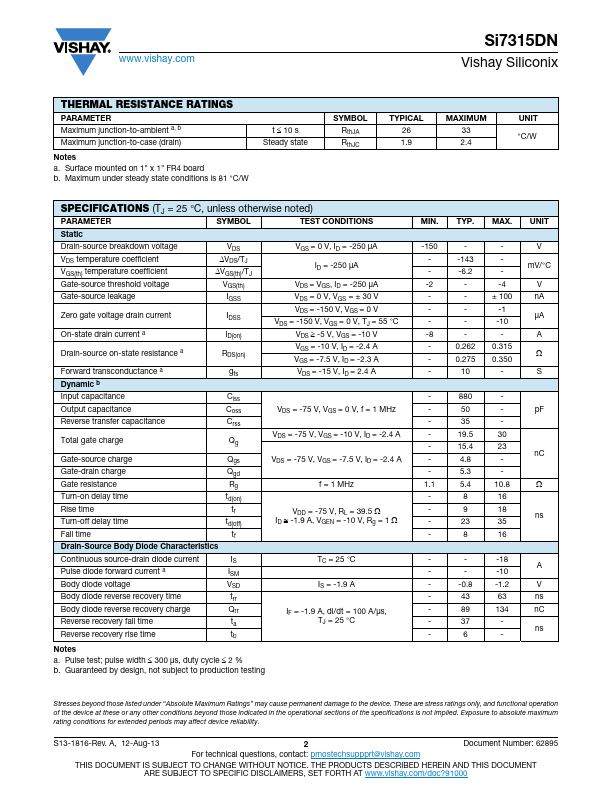

datasheet Preview Page 2 datasheet Preview Page 3
