SiC641 - 55A IPS

Name: SiC641
SKU: SiC641-1579258

Vishay

📥 Download Datasheet

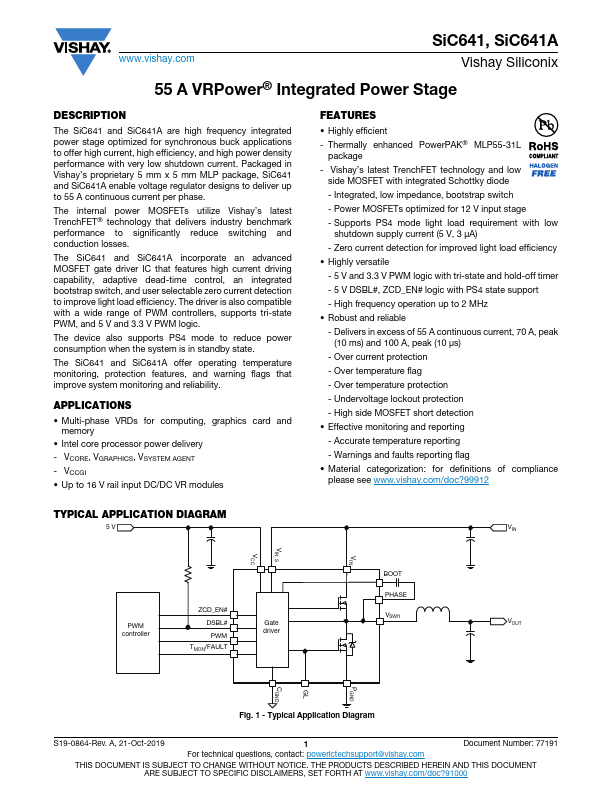

SiC641 Datasheet Preview — Preview of SiC641 PDF

Datasheet Details

Part number	SiC641
Manufacturer	Vishay
File Size	274.15 KB
Description	55A IPS
Datasheet	SiC641-Vishay.pdf

SiC641 Product details

Description

The SiC641 and SiC641A are high frequency integrated power stage optimized for synchronous buck applications to offer high current, high efficiency, and high power density performance with very low shutdown current.

Features

high current driving capability, adaptive dead-time control, an integrated bootstrap switch, and user selectable zero current detection to improve light load efficiency. The driver is also compatible with a wide range of PWM controllers, supports tri-state PWM, and 5 V and 3.3 V PWM logic. The device also supports PS4 mode to reduce power consumption when the system is in standby state. The SiC641 and SiC641A offer operating temperature monitoring, protection features, and warning flags that imp.
