SiR580DP N-Channel 80V MOSFET

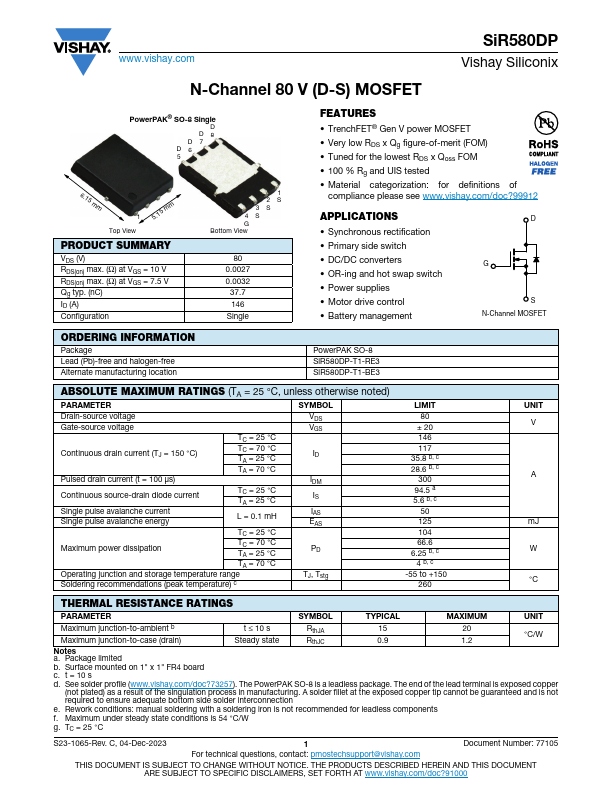

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.vishay.com SiR580DP Vishay Siliconix N-Channel 80 V (D-S) MOSFET PowerPAK® SO-8 Single D D8 D7 D6 5 6.15 mm 1 5.15 mm Top View PRODUCT SUM.

📥 Download Datasheet

Preview of SiR580DP PDF

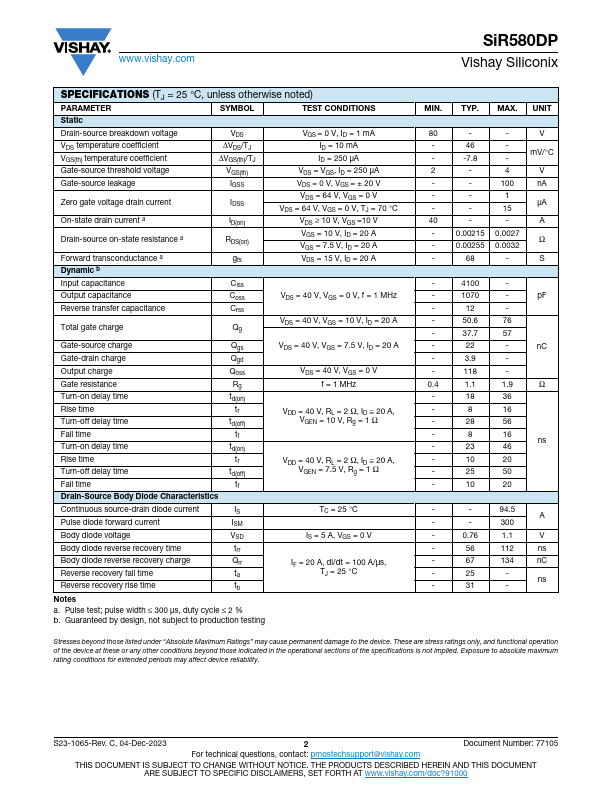

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SiR580DP
Manufacturer
Vishay ↗
File Size
232.43 KB
Datasheet
SiR580DP-Vishay.pdf
Description
N-Channel 80V MOSFET

Features

* TrenchFET® Gen V power MOSFET
* Very low RDS x Qg figure-of-merit (FOM)
* Tuned for the lowest RDS x Qoss FOM
* 100 % Rg and UIS tested

Applications

* Synchronous rectification
* Primary side switch
* DC/DC converters
* OR-ing and hot swap switch
* Power supplies
* Motor drive control
* Battery management D G S N-Channel MOSFET ORDERING INFORMATION Package Lead (Pb)-free and halogen-free

SiR580DP Distributors
