SiSD4112LDN N-Channel 100V MOSFET

SiSD4112LDN Description

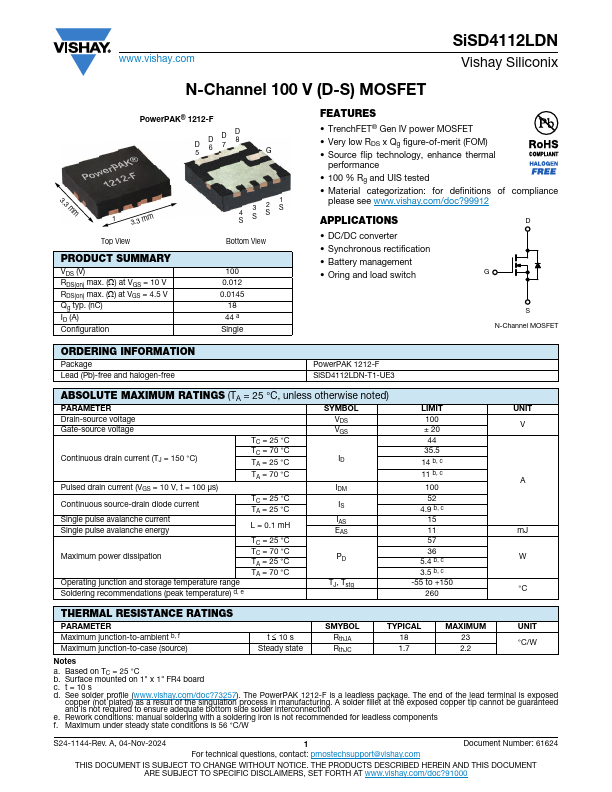

www.vishay.com SiSD4112LDN Vishay Siliconix N-Channel 100 V (D-S) MOSFET 3.3 mm PowerPAK® 1212-F D 5 D 6 D 7 D 8 G 1 3.3 mm Top View PROD.

SiSD4112LDN Features

* TrenchFET® Gen IV power MOSFET
* Very low RDS x Qg figure-of-merit (FOM)
* Source flip technology, enhance thermal performance
* 100 % Rg and UIS tested

SiSD4112LDN Applications

* DC/DC converter
* Synchronous rectification
* Battery management
* Oring and load switch D G S N-Channel MOSFET ORDERING INFORMATION Package Lead (Pb)-free and halogen-free PowerPAK 1212-F SiSD4112LDN-T1-UE3 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwis

📥 Download Datasheet

Preview of SiSD4112LDN PDF

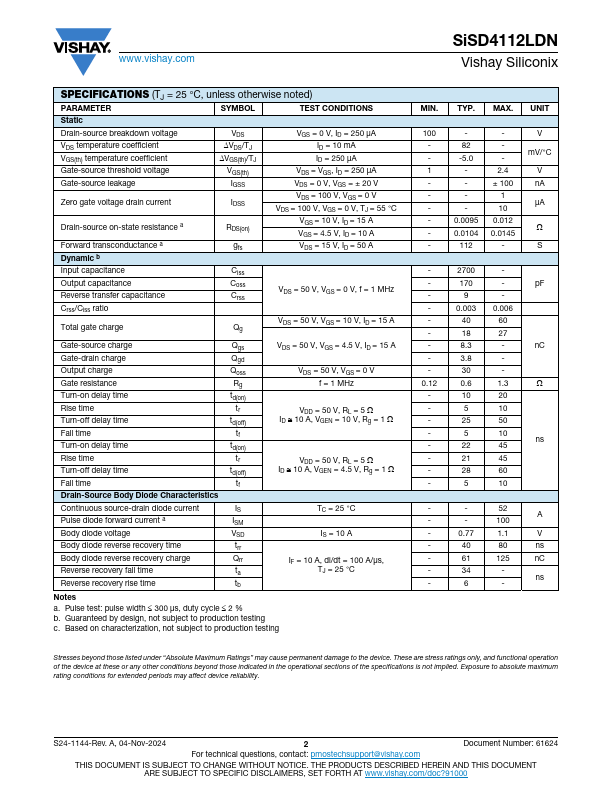

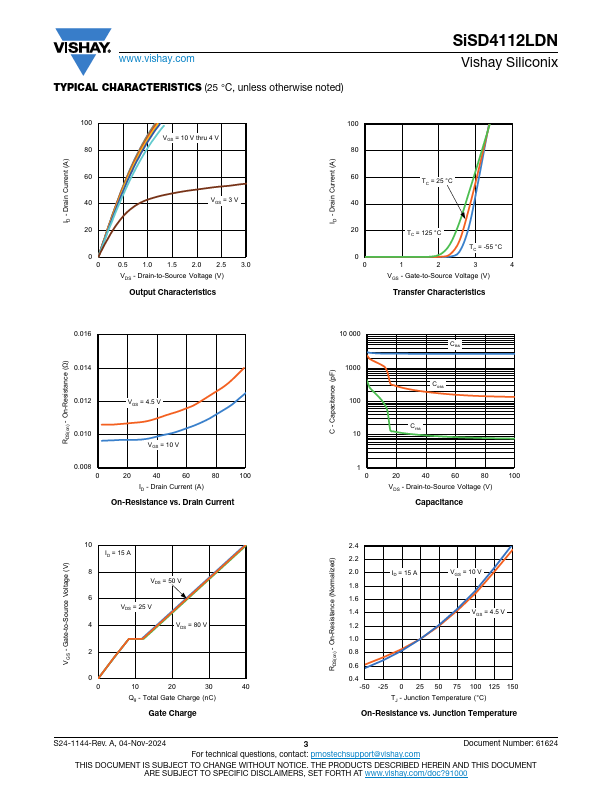

datasheet Preview Page 2 datasheet Preview Page 3
