SiSD5806DN - N-Channel 80V MOSFET

Name: SiSD5806DN
SKU: SiSD5806DN-1579322

Vishay

The SiSD5806DN by Vishay is a N-Channel 80V MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	SiSD5806DN
Manufacturer	Vishay
File Size	309.18 KB
Description	N-Channel 80V MOSFET
Datasheet	SiSD5806DN-Vishay.pdf

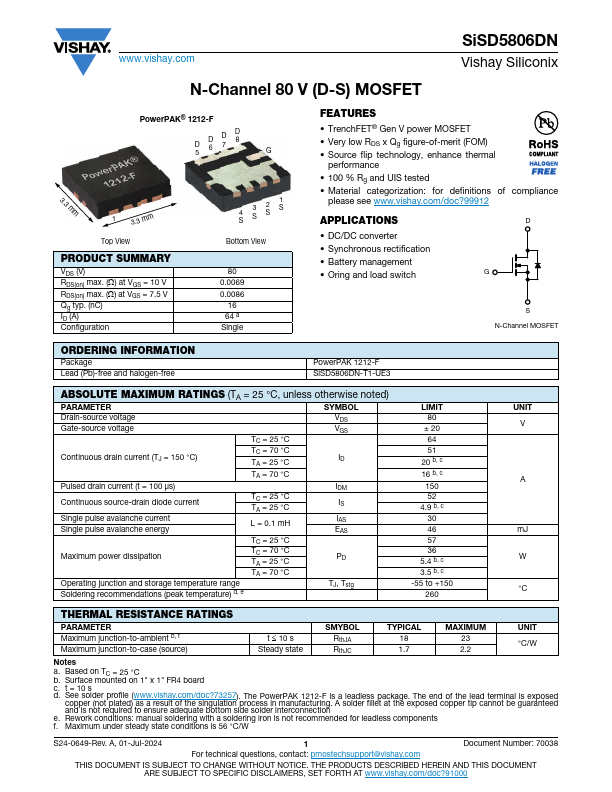

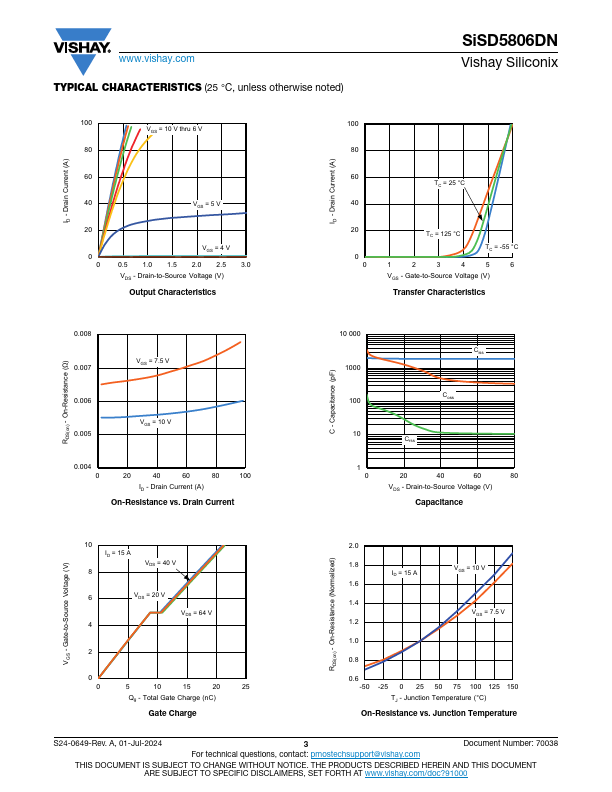

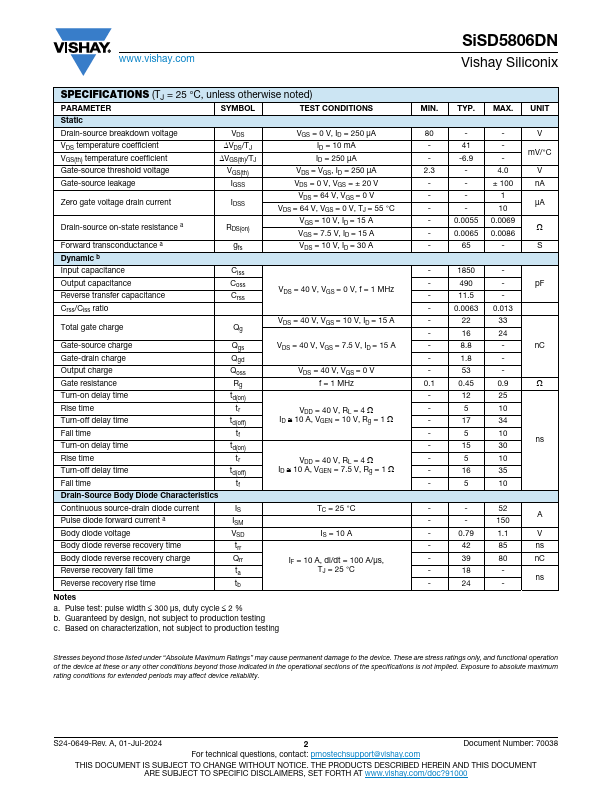

Additional preview pages of the SiSD5806DN datasheet.

TrenchFET® Gen V power MOSFET.
Very low RDS x Qg figure-of-merit (FOM).
Source flip technology, enhance thermal performance.
100 % Rg and UIS tested.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
