SiSS30ADN - N-Channel 80V MOSFET

SiSS30ADN Description

www.vishay.com SiSS30ADN Vishay Siliconix N-Channel 80 V (D-S) MOSFET PowerPAK® 1212-8S D D D 6 D 7 8 5 3.3 mm 1 Top View 3.3 mm PRODUCT S.

SiSS30ADN Features

* TrenchFET® Gen IV power MOSFET
* Very low RDS x Qg figure-of-merit (FOM)
* Tuned for the lowest RDS x Qoss FOM
* 100 % Rg and UIS tested

SiSS30ADN Applications

* Synchronous rectification
* Primary side switch
* DC/DC converter
* Solar micro inverter
* Motor drive switch
* Battery and load switch
* Industrial D G S N-Channel MOSFET PowerPAK 1212-8S SiSS30ADN-T1-GE3 ABSOLUTE MAXIMUM RATINGS (TA = 25

📥 Download Datasheet

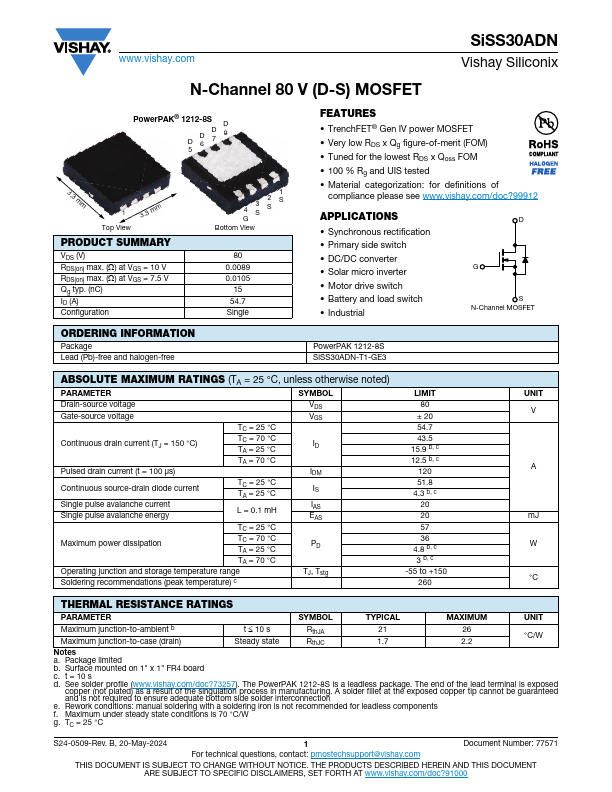

Preview of SiSS30ADN PDF

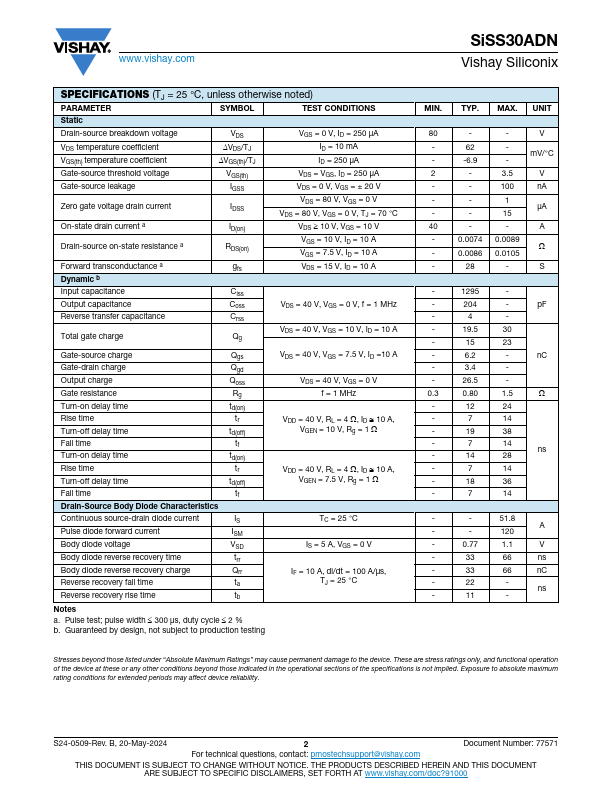

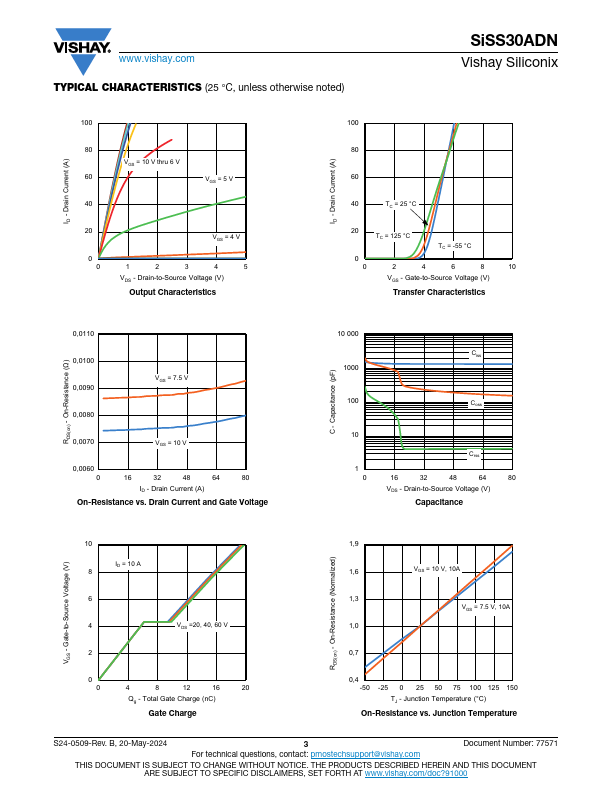

datasheet Preview Page 2 datasheet Preview Page 3
