SiSS06DN N-Channel 30V MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.vishay.com SiSS06DN Vishay Siliconix N-Channel 30 V (D-S) MOSFET PowerPAK® 1212-8S D D D 6 D 7 8 5 3.3 mm 1 Top View 3.3 mm PRODUCT SU.

📥 Download Datasheet

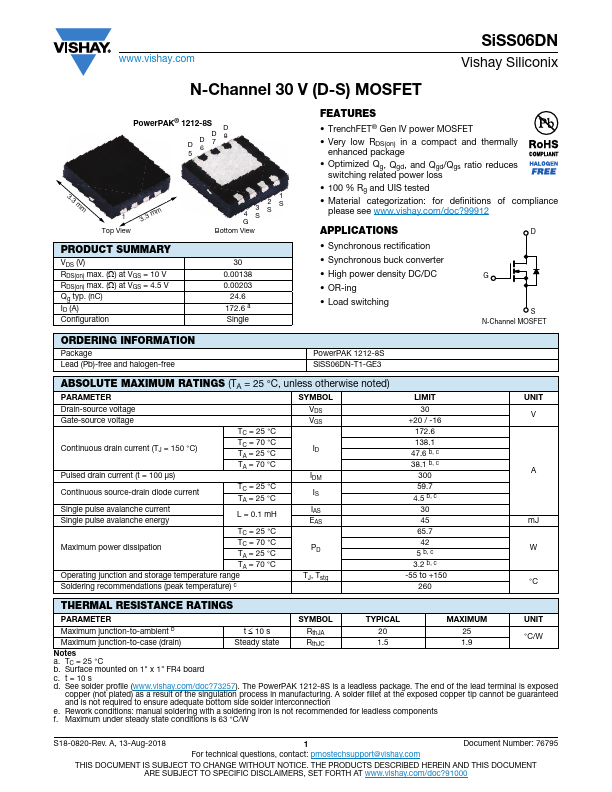

Preview of SiSS06DN PDF

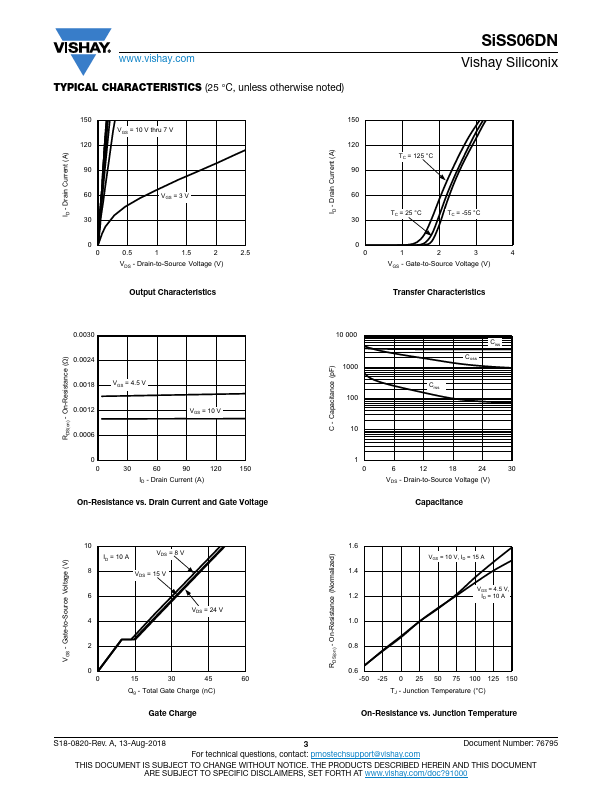

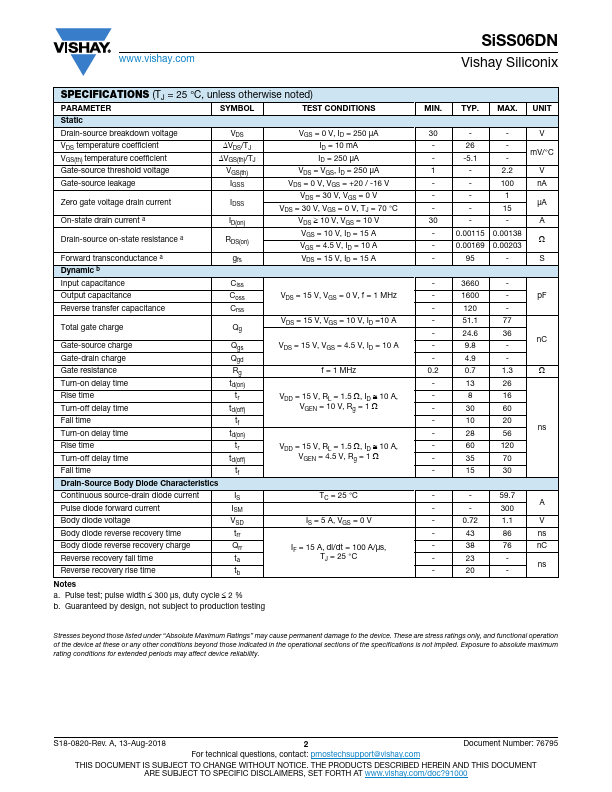

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SiSS06DN
Manufacturer
Vishay ↗
File Size
226.74 KB
Datasheet
SiSS06DN-Vishay.pdf
Description
N-Channel 30V MOSFET

Features

* TrenchFET® Gen IV power MOSFET
* Very low RDS(on) in a compact and thermally enhanced package
* Optimized Qg, Qgd, and Qgd/Qgs ratio reduces switching related power loss
* 100 % Rg and UIS tested
* Material categorization: for definitions of compliance pleas

Applications

* Synchronous rectification
* Synchronous buck converter
* High power density DC/DC
* OR-ing
* Load switching D G S N-Channel MOSFET ORDERING INFORMATION Package Lead (Pb)-free and halogen-free PowerPAK 1212-8S SiSS06DN-T1-GE3 ABSOLUTE MAXIMUM RATINGS (TA
