SiSS63DN - P-Channel 20V MOSFET

SiSS63DN Description

www.vishay.com SiSS63DN Vishay Siliconix P-Channel 20 V (D-S) MOSFET PowerPAK® 1212-8S D D D 6 D 7 8 5 3.3 mm 1 Top View 3.3 mm PRODUCT SU.

SiSS63DN Features

* TrenchFET® Gen III p-channel power MOSFET
* Leadership RDS(on) in compact and thermally enhanced package
* 100 % Rg and UIS tested

SiSS63DN Applications

* Battery management
* Load switch S G D P-Channel MOSFET ORDERING INFORMATION Package Lead (Pb)-free and halogen-free PowerPAK 1212-8S SiSS63DN-T1-GE3 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-source voltage VDS Gate-source voltag

📥 Download Datasheet

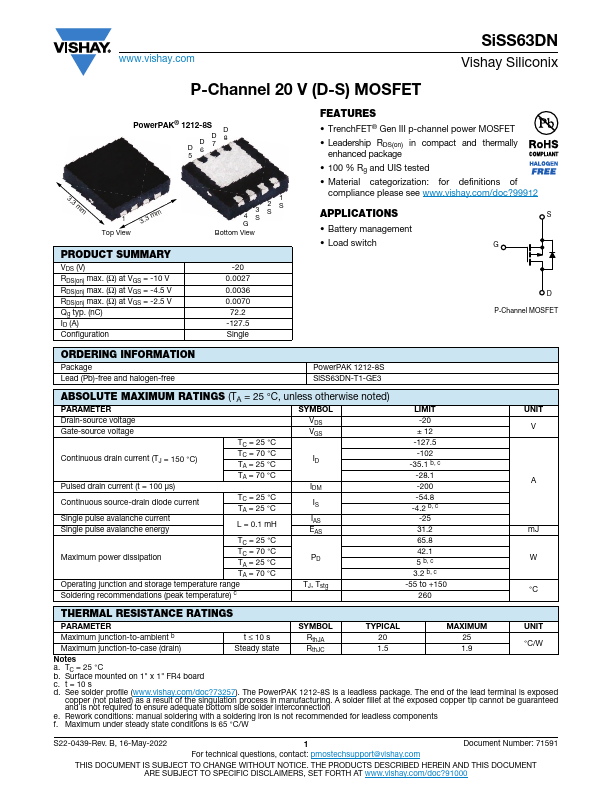

Preview of SiSS63DN PDF

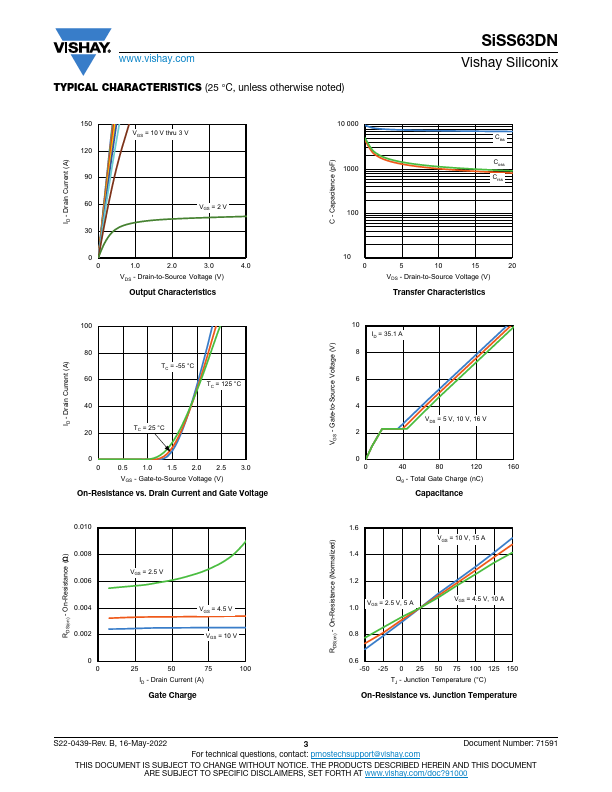

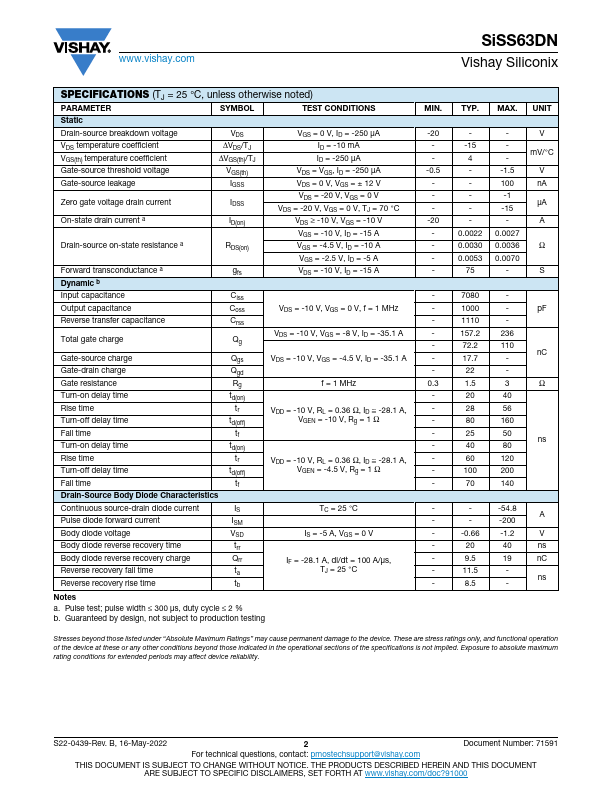

datasheet Preview Page 2 datasheet Preview Page 3
