SiSS66DN - N-Channel 30V MOSFET

SiSS66DN Description

www.vishay.com SiSS66DN Vishay Siliconix N-Channel 30 V (D-S) MOSFET with Schottky Diode PowerPAK® 1212-8S D D D 6 D 7 8 5 3.3 mm 1 Top View.

SiSS66DN Features

* TrenchFET® Gen IV power MOSFET
* SKYFET® with monolithic Schottky diode
* Optimized RDS x Qg and RDS x Qgd FOM enable higher efficiency for high frequency switching
* 100 % Rg and UIS tested
* Material categorization: for definitions of compliance please see

SiSS66DN Applications

* Synchronous rectification
* Synchronous buck converter
* DC/DC conversions G D Schottky Diode S N-Channel MOSFET ORDERING INFORMATION Package Lead (Pb)-free and halogen-free PowerPAK 1212-8S SiSS66DN-T1-GE3 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise not

📥 Download Datasheet

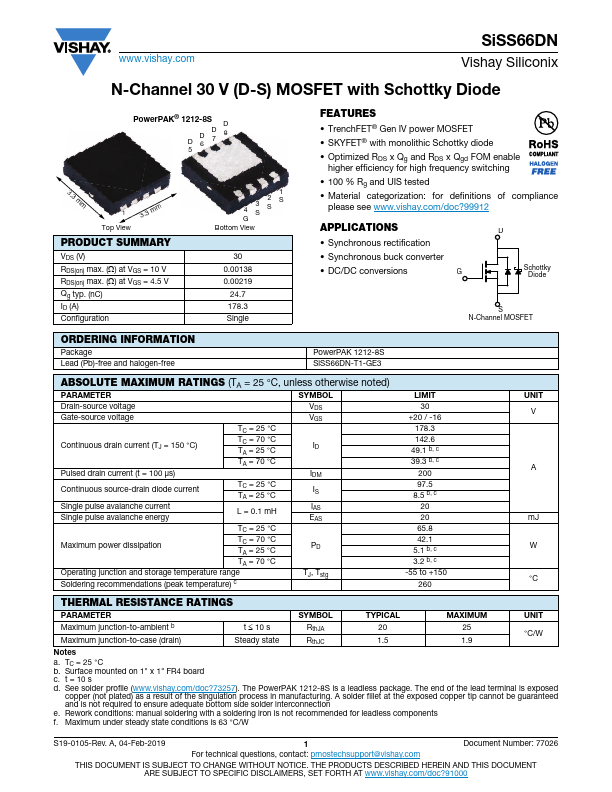

Preview of SiSS66DN PDF

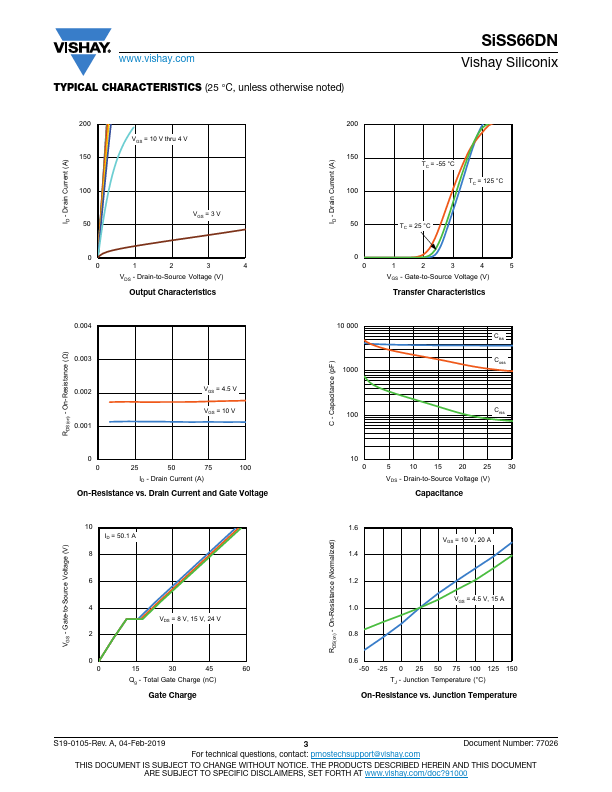

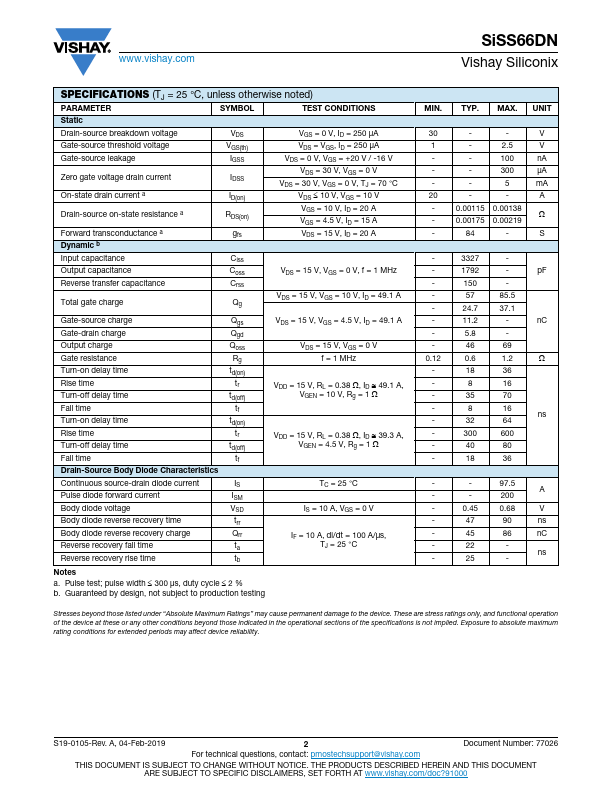

datasheet Preview Page 2 datasheet Preview Page 3
