SiSS64DN - N-Channel 30V MOSFET

SiSS64DN Description

www.vishay.com SiSS64DN Vishay Siliconix N-Channel 30 V (D-S) MOSFET PowerPAK® 1212-8S D D D 6 D 7 8 5 3.3 mm 1 Top View 3.3 mm PRODUCT SU.

SiSS64DN Features

* TrenchFET® Gen IV power MOSFET
* Optimized Qg, Qgd, and Qgd/Qgs ratio reduces switching related power loss
* 100 % Rg and UIS tested

SiSS64DN Applications

* Synchronous rectification
* High power density DC/DC
* VRMs and embedded DC/DC
* Synchronous buck converter
* Load switching D G S N-Channel MOSFET ORDERING INFORMATION Package Lead (Pb)-free and halogen-free PowerPAK 1212-8S SiSS64DN-T1-GE3 ABSOLUTE MAX

📥 Download Datasheet

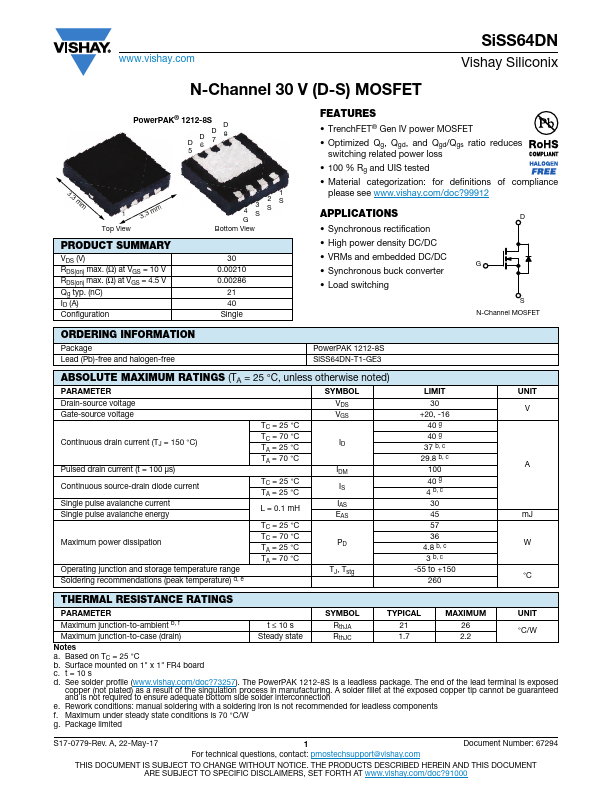

Preview of SiSS64DN PDF

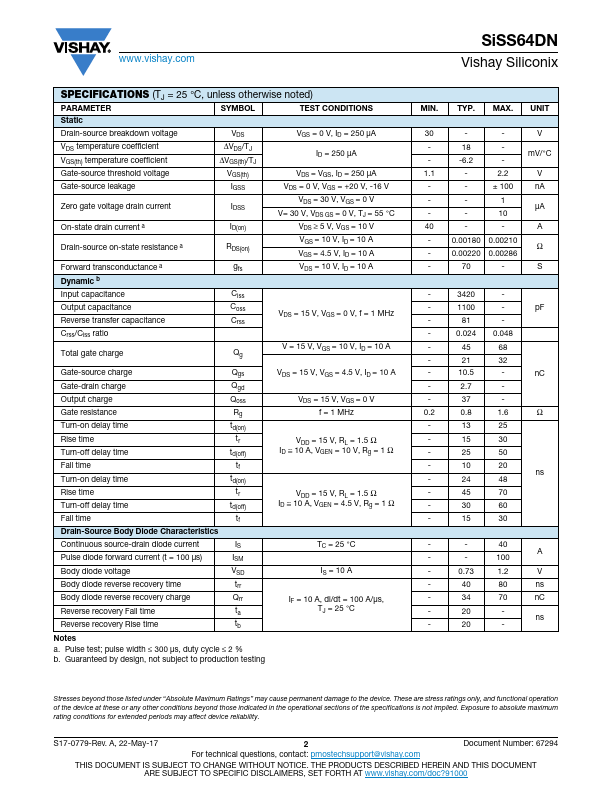

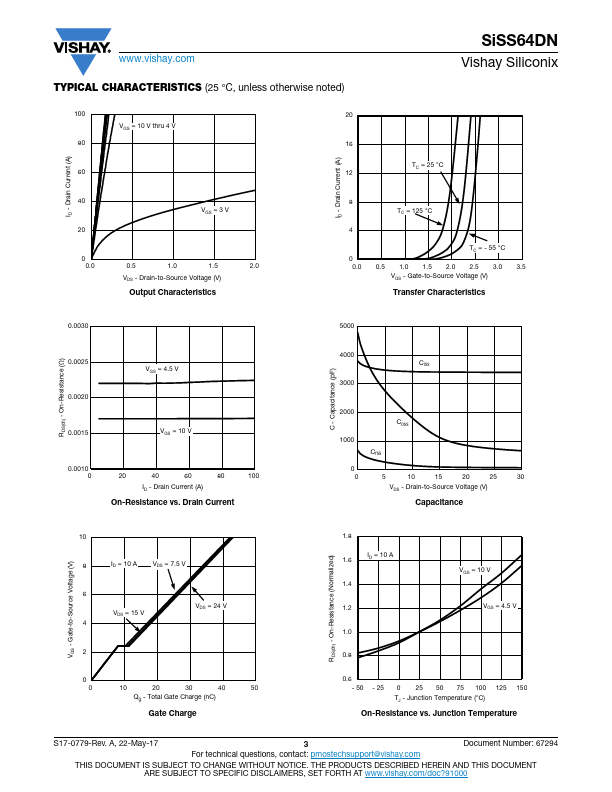

datasheet Preview Page 2 datasheet Preview Page 3
