Description

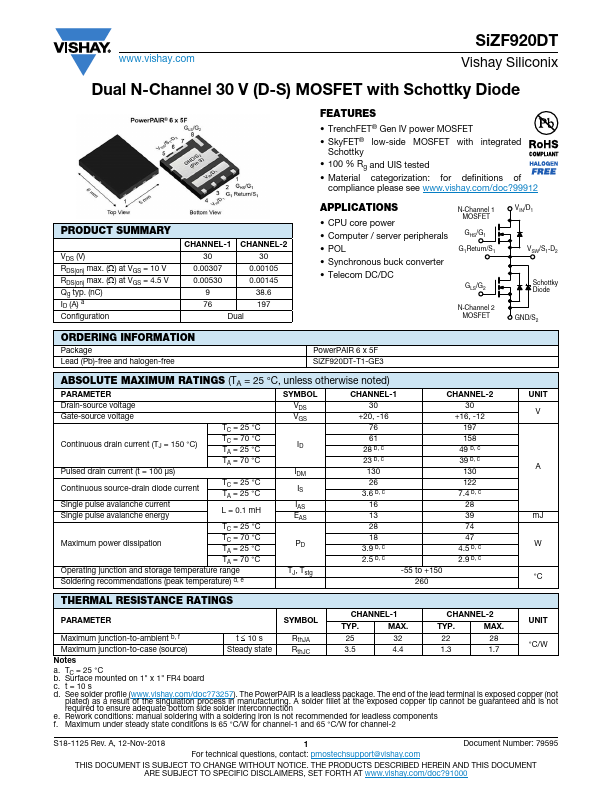

www.vishay.com SiZF920DT Vishay Siliconix Dual N-Channel 30 V (D-S) MOSFET with Schottky Diode .

📥 Download Datasheet

SiZF920DT Datasheet Preview — Preview of SiZF920DT PDF

Datasheet Specifications

Part number: SiZF920DT
Manufacturer: Vishay ↗
File Size: 276.04 KB
Datasheet: SiZF920DT-Vishay.pdf
Description: Dual N-Channel 30V MOSFET

Features

* TrenchFET® Gen IV power MOSFET
* SkyFET® low-side MOSFET with integrated Schottky
* 100 % Rg and UIS tested
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 PRODUCT SUMMARY VDS (V) RDS(on) max. () at VGS = 10 V RDS(on) m

Applications

* CPU core power
* Computer / server peripherals
* POL
* Synchronous buck converter
* Telecom DC/DC N-Channel 1 MOSFET GHS/G1 G1Return/S1 GLS/G2 N-Channel 2 MOSFET VIN/D1 VSW/S1-D2 Schottky Diode GND/S2 ORDERING INFORMATION Package Lead (Pb)-free and halog
