T85HFL100, T85HFL Datasheet - Vishay

T85HFL100 Fast Recovery Diodes

The series of T-modules uses fast recovery power diodes in a single diode configuration. The semiconductors are electrically isolated from the metal base, allowing common heatsink and compact assemblies to be built. These single diode modules can be used in conjunction with the thyristor modules as .

T85HFL100 Features

* Fast recovery time characteristics

* Electrically isolated base plate

* 3500 VRMS isolating voltage

* Standard JEDEC package

* Simplified mechanical designs, rapid assembly

* Large creepage distances

* UL E78996 approved

* Compliant t

T85HFL-Vishay.pdf

This datasheet PDF includes multiple part numbers: T85HFL100, T85HFL. Please refer to the document for exact specifications by model.

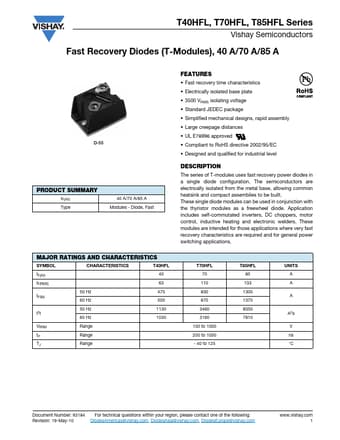

T85HFL100 Datasheet Preview Page 2 T85HFL100 Datasheet Preview Page 3

Datasheet Details

Part number:

T85HFL100, T85HFL

Manufacturer:

Vishay ↗

File Size:

418.86 KB

Description:

Fast recovery diodes.

Note:

This datasheet PDF includes multiple part numbers: T85HFL100, T85HFL.
Please refer to the document for exact specifications by model.
