TCRT1000, Reflective Optical Sensor

www.vishay.com TCRT1000, TCRT1010 Vishay Semiconductors Reflective Optical Sensor With Transistor Output TCRT1000 TCRT1010 21836 A CE C 19155_1.
The TCRT1000 and TCRT1010 are reflective sensors which include an infrared emitter and phototransistor in a leaded package which blocks visible light.

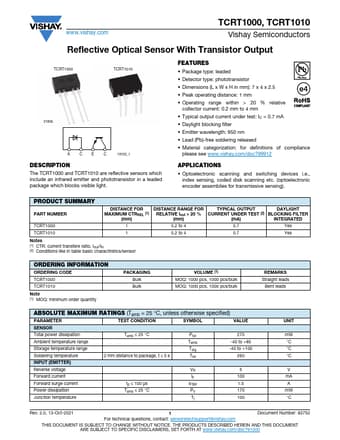

datasheet Preview Page 1 from Datasheet4u.com

TCRT1000-Vishay.pdf

TCRT1000 Datasheet Preview — Preview of TCRT1000 PDF

Datasheet Details

Part number:

TCRT1000

Manufacturer:

Vishay ↗

File Size:

127.34 KB

Description:

Reflective Optical Sensor

Features

* Package type: leaded
* Detector type: phototransistor
* Dimensions (L x W x H in mm): 7 x 4 x 2.5
* Peak operating distance: 1 mm
* Operating range within > 20 % relative collector current: 0.2 mm to 4 mm
* Typical output current under test: IC = 0.7

Applications

* Optoelectronic scanning and switching devices i. e. , index sensing, coded disk scanning etc. (optoelectronic encoder assemblies for transmissive sensing). PRODUCT SUMMARY PART NUMBER DISTANCE FOR DISTANCE RANGE FOR TYPICAL OUTPUT DAYLIGHT MAXIMUM CTRREL (1) RELATIVE Iout > 20 % CURREN
