TCRT5000L - Reflective Optical Sensor

Vishay

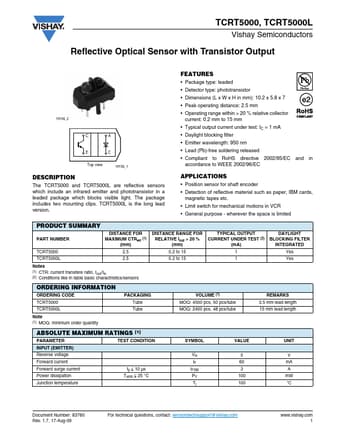

TCRT5000L Datasheet Preview — Preview of TCRT5000L PDF

Datasheet Details

Part number	TCRT5000L
Manufacturer	Vishay ↗
File Size	306.26 KB
Description	Reflective Optical Sensor
Datasheet	TCRT5000L-Vishay.pdf

TCRT5000L Product details

Description

The TCRT5000 and TCRT5000L are reflective sensors which include an infrared emitter and phototransistor in a leaded package which blocks visible light. Position sensor for shaft encoder Detection of reflective material such as paper, IBM cards, magnetic tapes etc. Limit switch for mechanical motions in VCR General purpose - wherever the space is limited PRODUCT SUMM

Features

Package type: leaded.
Detector type: phototransistor.
Dimensions (L x W x H in mm): 10.2 x 5.8 x 7.
Peak operating distance: 2.5 mm 19156_2.
Operating range within > 20 % relative collector current: 0.2 mm to 15 mm.
Typical output current under test: IC = 1 mA C A.
Daylight blocking filter.
Emitter wavelength: 950 nm.
Lead (Pb)-free soldering released 19156_1 E C Top view.
Compliant to RoHS directive.
