TSHA6203UL

Infrared Emitting Diode

Vishay

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Vishay Semiconductors	TSHA6203UL	EMITTER IR	DigiKey	0	0	$0	🛒 Buy Now

Download Datasheet (107.86 KB)

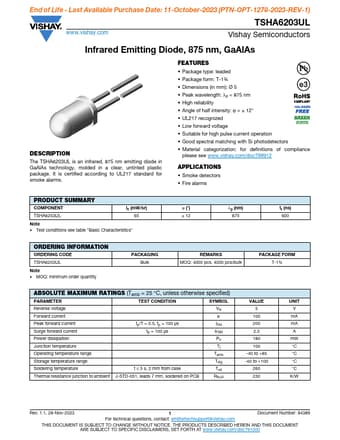

TSHA6203UL Datasheet Preview — Preview of TSHA6203UL Datasheet

Datasheet Details

Part number:

TSHA6203UL

Manufacturer:

Vishay ↗

File Size:

107.86 KB

Description:

Infrared emitting diode.
End of Life - Last Available Purchase Date: 11-October-2023 (PTN-OPT-1278-2023-REV-1) www.vishay.co.
The TSHA6203UL is an infrared, 875 nm emitting diode in GaAlAs technology, molded in a clear, untint.

✔ TSHA6203UL Features

Package type: leaded
Package form: T-1¾
Dimensions (in mm): Ø 5
Peak wavelength: λp = 875 nm
High reliability
Angle of half intensity: ϕ = ± 12°
UL217 recog

✔ TSHA6203UL Application

Smoke detectors
Fire alarms PRODUCT SUMMARY COMPONENT Ie (mW/sr) ϕ (°) TSHA6203UL 65 ± 12 Note
