TSHA6503

Infrared Emitting Diode

Vishay

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	Stock	Quantity	Price	Buy Now
	Vishay Intertechnologies	TSHA6503	TSHA6503/T1 3/4	INSTOCK	Chip 1 Exchange	3218	0	$0

📥 Download PDF (102.36 KB)

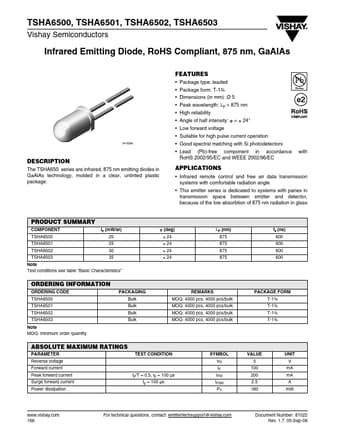

TSHA6503 Datasheet Preview Page 1 — Preview of TSHA6503 Datasheet

Datasheet Details

Part number:

TSHA6503

Manufacturer:

Vishay ↗

File Size:

102.36 KB

Download:

📄 Download TSHA6503 Datasheet PDF

Description:

Infrared emitting diode.
TSHA6500, TSHA6501, TSHA6502, TSHA6503 Vishay Semiconductors Infrared Emitting Diode, RoHS Compliant.
The TSHA650. series are infrared, 875 nm emitting diodes in GaAlAs technology, molded in a clear, un.

✔ TSHA6503 Features

Package type: leaded
Package form: T-1¾
Dimensions (in mm): Ø 5
Peak wavelength: λp = 875 nm
High reliability
Angle of half intensity: ϕ = ± 24°
Low forward

✔ TSHA6503 Application

Infrared remote control and free air data transmission systems with comfortable radiation angle
This emi
