TSOP37240, TSOP37236 - IR Receiver

Vishay

Datasheet Details

Part number	TSOP37240, TSOP37236
Manufacturer	Vishay ↗
File Size	323.13 KB
Description	IR Receiver

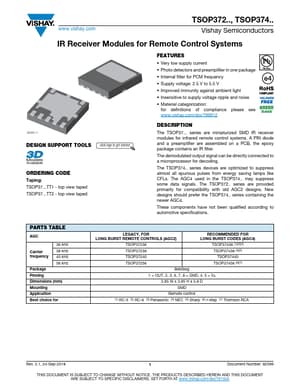

Datasheet	TSOP37236-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: TSOP37240, TSOP37236. Please refer to the document for exact specifications by model.

The TSOP37 series are miniaturized SMD IR receiver modules for infrared remote control systems.

Very low supply current.
Photo detectors and preamplifier in one package.
Internal filter for PCM frequency.
Supply voltage: 2.5 V to 5.5 V.
Improved immunity against ambient light.
Insensitive to supply voltage ripple and noise.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.
